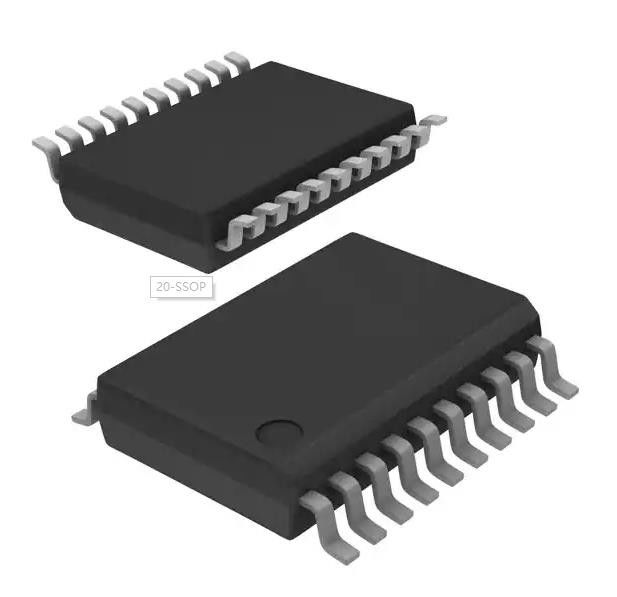

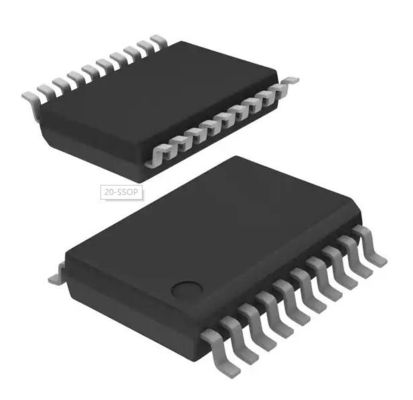

ADS1255IDBR 24 Bit Analog to Digital Converter 1, 2 Input 1 Sigma-Delta 20-SSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS1255IDBR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 24 | Sampling Rate (Per Second): | 30k |
|---|---|---|---|
| Number Of Inputs: | 1, 2 | Input Type: | Differential, Single Ended |
| Data Interface: | SPI | Configuration: | MUX-PGA-ADC |
| Number Of A/D Converters: | 1 | Architecture: | Sigma-Delta |
| Voltage - Supply, Analog: | 5V | Voltage - Supply, Digital: | 1.8V ~ 3.6V |
Product Description
ADS1255IDBR 24 Bit Analog to Digital Converter 1, 2 Input 1 Sigma-Delta 20-SSOP
Specifications of ADS1255IDBR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 30k |
| Number of Inputs | 1, 2 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.8V ~ 3.6V |
| Features | PGA |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADS1255 |
Features of ADS1255IDBR
* 24 Bits, No Missing Codes
− All Data Rates and PGA Settings
* Up to 23 Bits Noise-Free Resolution
* ±0.0010% Nonlinearity (max)
* Data Output Rates to 30kSPS
* Fast Channel Cycling
− 18.6 Bits Noise-Free (21.3 Effective Bits) at 1.45kHz
* One-Shot Conversions with Single-Cycle Settling
* Flexible Input Multiplexer with Sensor Detect
− Four Differential Inputs (ADS1256 only)
− Eight Single-Ended Inputs (ADS1256 only)
* Chopper-Stabilized Input Buffer
* Low-Noise PGA: 27nV Input-Referred Noise
* Self and System Calibration for All PGA Settings
* 5V Tolerant SPI™-Compatible Serial Interface
* Analog Supply: 5V
* Digital Supply: 1.8V to 3.6V
* Power Dissipation
− As Low as 38mW in Normal Mode
− 0.4mW in Standby Mode
Applications of ADS1255IDBR
Scientific Instrumentation
Industrial Process Control
Medical Equipment
Test and Measurement
Weigh Scales
Environmental & Export Classifications of ADS1255IDBR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
