2500Vrms Dual Channel Digital Isolators 4Mbps ISO1212DBQR 16-SSOP
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ISO1212DBQR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Isolation: | 2500Vrms | Voltage - Supply: | 2.25V ~ 5.5V |
|---|---|---|---|
| Operating Temperature: | -40°C ~ 125°C | Mounting Type: | Surface Mount |
| Package / Case: | 16-SSOP (0.154", 3.90mm Width) | Supplier Device Package: | 16-SSOP |
| High Light: | 2500Vrms Dual Channel Digital Isolators,4Mbps Dual Channel Digital Isolators,4Mbps ISO1212DBQR |
||
Product Description

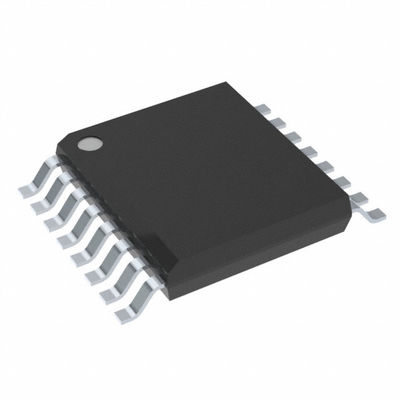

ISO1212DBQR Digital Isolators 2500Vrms 2 Channel 4Mbps 25kV/µs CMTI 16-SSOP
Features of ISO1212DBQR
1• Compliant to IEC 61131-2; Type 1, 2, 3
characteristics for 24-V isolated digital inputs
• Supports 9-V to 300-V DC and AC digital input
designs using external resistors
• Accurate Current Limit for Low-Power Dissipation:
– 2.2 mA to 2.47 mA for Type 3
– Adjustable up to 6.5 mA
• Eliminates the need for field-side power supply
• High input-voltage range with reverse polarity
protection: ±60 V
• Wire-break detection (refer to TIDA-01509)
• Configurable as sourcing or sinking input
• High data rates: up to 4 Mbps
• Enable pin to multiplex output signals
• High transient immunity: ±70-kV/µs CMTI
• Wide supply range (VCC1): 2.25 V to 5.5 V
• Ambient temperature range: –40°C to +125°C
• Compact package options:
– Single-channel ISO1211, SOIC-8
– Dual-channel ISO1212, SSOP-16
• Safety-Related Certifications:
– Basic insulation per DIN VDE V 0884-11
– UL 1577 recognition, 2500-VRMS insulation
– IEC 60950-1, IEC 62368-1, IEC 61010-1 and
GB 4943.1-2011 certifications
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Isolators
Digital Isolators
|
|
Series
|
ISO121x
|
|
Product Status
|
Active
|
|
Technology
|
Capacitive Coupling
|
|
Type
|
General Purpose
|
|
Isolated Power
|
No
|
|
Number of Channels
|
2
|
|
Inputs - Side 1/Side 2
|
0/2
|
|
Channel Type
|
Unidirectional
|
|
Voltage - Isolation
|
2500Vrms
|
|
Common Mode Transient Immunity (Min)
|
25kV/µs
|
|
Data Rate
|
4Mbps
|
|
Propagation Delay tpLH / tpHL (Max)
|
140ns, 15ns
|
|
Pulse Width Distortion (Max)
|
-
|
|
Rise / Fall Time (Typ)
|
3ns, 3ns
|
|
Voltage - Supply
|
2.25V ~ 5.5V
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-SSOP (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
16-SSOP
|
|
Base Product Number
|
ISO1212
|
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
