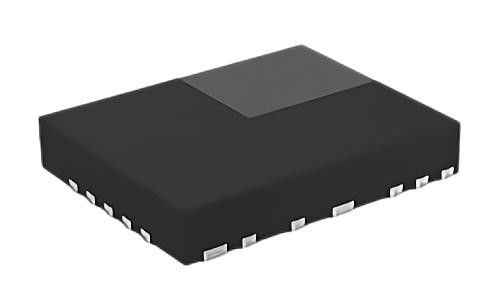

LM53635NQRNLRQ1 Regulator IC Positive Fixed 3.3V 1 Output 3.5A 22-VFQFN
Product Details:
Place of Origin: | Original |
Brand Name: | Original |
Certification: | Original |
Model Number: | LM53635NQRNLRQ1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | carton box |
Delivery Time: | 1-3working days |
Payment Terms: | T/T |
Supply Ability: | 100,000 |
Detail Information |
|||
Topology: | Buck | Voltage - Input (Min): | 3.9V |
---|---|---|---|
Voltage - Input (Max): | 36V | Voltage - Output (Min/Fixed): | 3.3V |
Current - Output: | - | Frequency - Switching: | 500kHz |
Output Type: | 2.1Mhz | ||
High Light: | LM53635NQRNLRQ1 Regulator IC,3.5A 22-VFQFN,Regulator IC Positive Fixed 3.3V |
Product Description
LM53635NQRNLRQ1 Regulator IC Positive Fixed 3.3V 1 Output 3.5A 22-VFQFN
Features of LM53635NQRNLRQ1
• AEC-Q100 automotive qualified:
– Device temperature grade 1: –40°C to +125°C
ambient operating temperature range
– Device HBM classification level 2
– Device CDM classification level C6
• –40°C to +150°C junction temperature range
• 15-µA quiescent urrent at no load (typical) with
3.3-V output
• 5.0-mm × 4.0-mm VQFN package with or without
wettable flanks and 0.6-mm VIN spacing
• Low EMI and switch noise
• Spread spectrum option
• External frequency synchronization
• RESET output with internal filter and 3-ms release
timer
• Pin-selectable forced PWM mode
• Built-in compensation, soft start, current limit,
thermal shutdown, and UVLO
• 0.6-V dropout at 3.5 A at 105°C TA
• ±1% output voltage tolerance (–40°C to 125°C TJ
)
• Available with fixed 5-V, 3.3-V or adjustable output
TYPE
|
DESCRIPTION
|
---|---|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
|
Mfr
|
T I
|
Series
|
Automotive, AEC-Q100
|
Product Status
|
Active
|
Function
|
Step-Down
|
Output Configuration
|
Positive
|
Topology
|
Buck
|
Output Type
|
Fixed
|
Number of Outputs
|
1
|
Voltage - Input (Min)
|
3.9V
|
Voltage - Input (Max)
|
36V
|
Voltage - Output (Min/Fixed)
|
3.3V
|
Voltage - Output (Max)
|
-
|
Current - Output
|
3.5A
|
Frequency - Switching
|
2.1MHz
|
Synchronous Rectifier
|
Yes
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
Mounting Type
|
Surface Mount, Wettable Flank
|
Package / Case
|
22-VFQFN
|
Supplier Device Package
|
22-VQFN-HR (5x4)
|
Base Product Number
|
LM53635
|
Applications of LM53635NQRNLRQ1
• Telematics
• Head unit
• Instrumentation cluster
• Battery-powered applications
