3.3V 1 Output 2.5A Buck Switching Regulator IC LM53625MQRNLRQ
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LM53625MQRNLRQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | LM53625MQRNLRQ | Voltage - Input (Min): | 3.9V |
|---|---|---|---|
| Voltage - Input (Max): | 36V | Voltage - Output (Max): | 3.3V |
| Operating Temperature: | -40°C ~ 125°C (TJ) | Current - Output: | 2.5A |
| Frequency - Switching: | 2.1MHz | ||
| High Light: | 2.5A Buck Switching Regulator IC,3.3V Buck Switching Regulator IC,LM53625MQRNLRQ |
||
Product Description

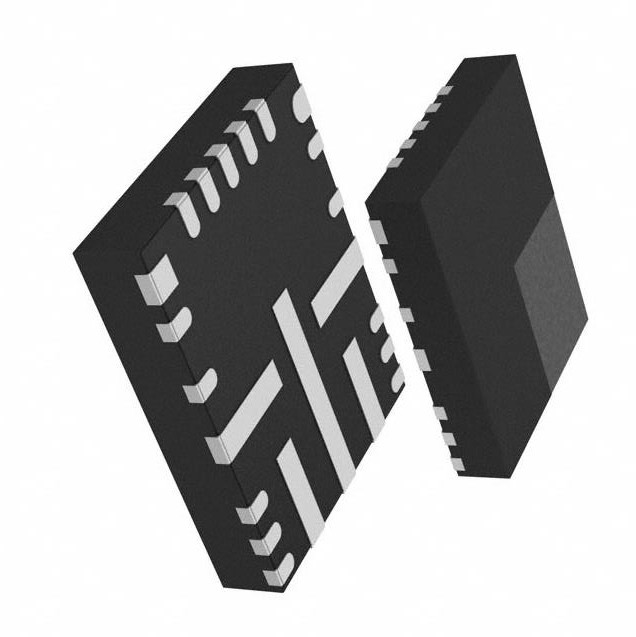

LM53625MQRNLRQ Integrated Circuit Chip IC 3.3V 1 Output 2.5A 22-VFQFN
Buck Switching Regulator IC Positive Adjustable 3.3V 1 Output 2.5A 22-VFQFN
Features of LM53625MQRNLRQ
AEC-Q100 automotive qualified:
– Device temperature grade 1: –40°C to +125°C
ambient operating temperature range
– Device HBM classification level 2
– Device CDM classification level C6
• –40°C to +150°C junction temperature range
• 15-µA quiescent urrent at no load (typical) with
3.3-V output
• 5.0-mm × 4.0-mm VQFN package with or without
wettable flanks and 0.6-mm VIN spacing
• Low EMI and switch noise
• Spread spectrum option
• External frequency synchronization
• RESET output with internal filter and 3-ms release
timer
• Pin-selectable forced PWM mode
• Built-in compensation, soft start, current limit,
thermal shutdown, and UVLO
• 0.6-V dropout at 3.5 A at 105°C TA
• ±1% output voltage tolerance (–40°C to 125°C TJ
)
• Available with fixed 5-V, 3.3-V or adjustable output
Specifications of LM53625MQRNLRQ
|
Product
|
LM53625MQRNLRQ
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
| Package | Tape & Reel (TR) |
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
3.9V
|
|
Voltage - Input (Max)
|
36V
|
|
Voltage - Output (Min/Fixed)
|
3.3V
|
|
Voltage - Output (Max)
|
6V
|
|
Current - Output
|
2A
|
|
Frequency - Switching
|
2.1MHz
|
|
Synchronous Rectifier
|
Yes
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-PowerTSSOP (0.173", 4.40mm Width)
|
|
Supplier Device Package
|
16-HTSSOP
|
|
Base Product Number
|
LM53602
|
range (−10 ̊
Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
APPLICATIONS of LM53625MQRNLRQ
• Head unit
• Instrumentation cluster
• Battery-powered applications
