• LM43602PWPR Step Down Regulator IC 1V 1 Output 2A 16-PowerTSSOP
LM43602PWPR Step Down Regulator IC 1V 1 Output 2A 16-PowerTSSOP

LM43602PWPR Step Down Regulator IC 1V 1 Output 2A 16-PowerTSSOP

Product Details:

Place of Origin: Original
Brand Name: Original
Certification: Original
Model Number: LM43602PWPR

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 1-3working days
Payment Terms: T/T
Supply Ability: 100,000
Get Best Price Contact Now

Detail Information

Function: Step-Down Output Type: Adjustable
Operating Temperature: -40°C ~ 125°C Voltage - Input (Min): 3.5V
Voltage - Input (Max): 36V Voltage - Output (Max): 28V
Frequency - Switching: 200kHz ~ 2.2MHz
High Light:

1V 2A Step Down Regulator IC

,

IC 16-PowerTSSOP

,

LM43602PWPR Step Down Regulator IC

Product Description

LM43602PWPR Regulator IC Positive Adjustable 1V 1 Output 2A 16-PowerTSSOP



Features of LM43602PWPR


  27-µA Quiescent Current in Regulation
• High Efficiency at Light Load (DCM and PFM)
• Meets EN55022/CISPR 22 EMI standards
• Integrated Synchronous Rectification
• Adjustable Frequency Range: 200 kHz to 2.2 MHz
(500 kHz Default)
• Frequency Synchronization to External Clock
• Internal Compensation
• Stable with Almost Any Combination of Ceramic,
Polymer, Tantalum, and Aluminum Capacitors
• Power-Good Flag
• Soft-Start into a Pre-Biased Load
• Internal Soft Start: 4.1 ms
• Extendable Soft-Start Time by External Capacitor
• Output Voltage Tracking Capability
• Precision Enable to Program System UVLO
• Output Short Circuit Protection with Hiccup Mode
• Overtemperature Thermal Shutdown Protection
• Create a Custom Design Using the LM43602 with the WEBENCH® Power Designer.



Product Attributes of LM43602PWPR



TYPE
DESCRIPTION
Mfr
TI
Series
SIMPLE SWITCHER®
Product Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
3.5V
Voltage - Input (Max)
36V
Voltage - Output (Min/Fixed)
1V
Voltage - Output (Max)
28V
Current - Output
2A
Frequency - Switching
200kHz ~ 2.2MHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
16-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package
16-HTSSOP
Base Product Number
LM43602



Applications of LM43602PWPR


• Industrial Power Supplies
• Telecommunications Systems
• Sub-AM Band Automotive
• General Purpose Wide VIN Regulation
• High Efficiency Point-Of-Load Regulation





Description of LM43602PWPR


The LM43602 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 2 A of load current from an input voltage ranging from 3.5 V to 36 V (42-V absolute maximum).
The LM43602 provides exceptional efficiency, output accuracy, and dropout voltage in a very small solution size.

An extended family is available in 0.5-A, 1-A, and 3-A load current options in pin-to-pin compatible packages.

Peak current-mode control is employed to achieve simple control loop compensation and cycleby-cycle current limiting.

Optional features such as programmable switching frequency, synchronization, power-good flag, precision enable, internal soft start, extendable soft start, and tracking provide a flexible and easy-to-use platform for a wide range of applications.

Discontinuous conduction and automatic frequency modulation at light loads improve light-load efficiency.

The family requires few external components and terminal arrangement allows simple, optimum PCB layout. Protection features include
thermal shutdown, VCC undervoltage lockout, cycleby-cycle current limit, and output short circuit protection.

The LM43602 device is available in a 16- lead HTSSOP package (5.1 mm × 6.6 mm × 1.2 mm) and 16-pin VSON package with wettable flanks.

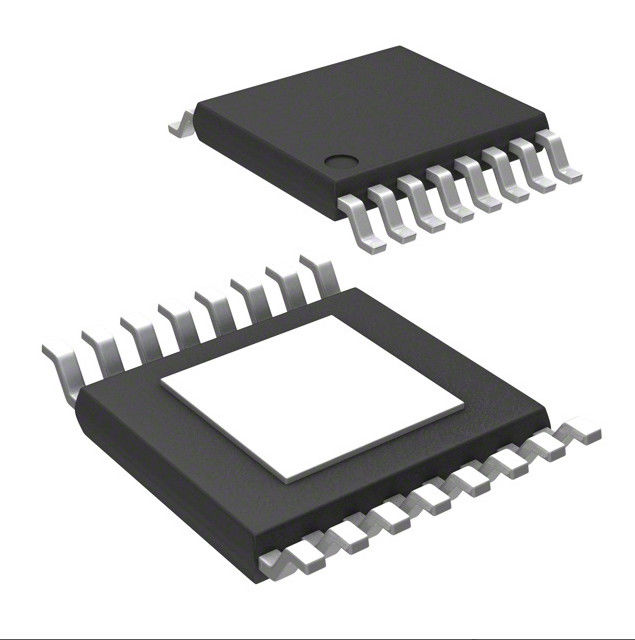

LM43602PWPR Step Down Regulator IC 1V 1 Output 2A 16-PowerTSSOP 0

LM43602PWPR Step Down Regulator IC 1V 1 Output 2A 16-PowerTSSOP 1
