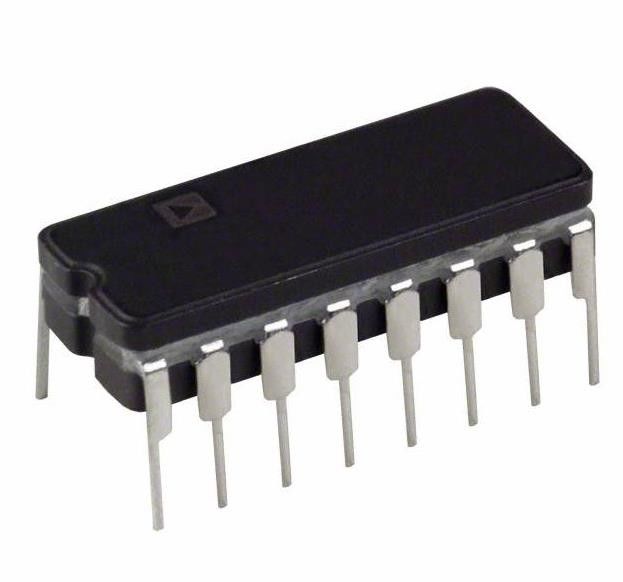

DAC08EQ 8 Bit Digital to Analog Converter 1 16-CERDIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DAC08EQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Differential | Number Of Elements: | 4 |
|---|---|---|---|
| Output Type: | Open-Collector, Open-Drain, Rail-to-Rail | Voltage - Supply, Single/Dual (±): | 2V ~ 30V, ±1V ~ 15V |
| Voltage - Input Offset (Max): | 5mV @ 5V | Current - Input Bias (Max): | 0.1µA @ 5V |
| Current - Output (Typ): | 16mA @ 5V | Current - Quiescent (Max): | 2mA |
Product Description
LM139FK Comparator Differential Open-Collector, Open-Drain, Rail-to-Rail 20-LCCC
Specifications of DAC08EQ
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Type | Differential |
| Number of Elements | 4 |
| Output Type | Open-Collector, Open-Drain, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 2V ~ 30V, ±1V ~ 15V |
| Voltage - Input Offset (Max) | 5mV @ 5V |
| Current - Input Bias (Max) | 0.1µA @ 5V |
| Current - Output (Typ) | 16mA @ 5V |
| Current - Quiescent (Max) | 2mA |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | 300ns (Typ) |
| Hysteresis | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 20-CLCC |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-LCCC (8.89x8.89) |
Features of DAC08EQ
* Fast settling output current: 85 ns
* Full-scale current prematched to ±1 LSB
* Direct interface to TTL, CMOS, ECL, HTL, PMOS
* Nonlinearity to 0.1% maximum over temperature range
* High output impedance and compliance: −10 V to +18 V
* Complementary current outputs
* Wide range multiplying capability: 1 MHz bandwidth
* Low FS current drift: ±10 ppm/°C
* Wide power supply range: ±4.5 V to ±18 V
* Low power consumption: 33 mW at ±5 V
* Low cost
Applications of DAC08EQ
The DAC08 series of 8-bit monolithic digital-to-analog converters provide very high speed performance coupled with low cost and outstanding applications flexibility.
Environmental & Export Classifications of DAC08EQ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
