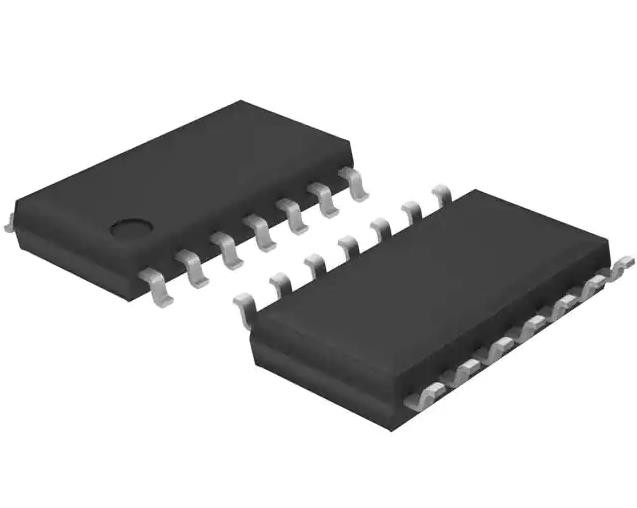

SN74LS08NSR Integrated Circuit Chip AND Gate IC 4 Channel 14-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LS08NSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | AND Gate | Number Of Circuits: | 4 |
|---|---|---|---|
| Number Of Inputs: | 2 | Voltage - Supply: | 4.75V ~ 5.25V |
| Current - Output High, Low: | 400µA, 8mA | 400µA, 8mA: | 0.8V |
| Input Logic Level - High: | 2V | Max Propagation Delay @ V, Max CL: | Max Propagation Delay @ V, Max CL |
Product Description
SN74LS08NSR Integrated Circuit Chip AND Gate IC 4 Channel 14-SOIC
Specifications of SN74LS08NSR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74LS |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Output High, Low | 400µA, 8mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 20ns @ 5V, 15pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SO |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
| Base Product Number | 74LS08 |
Features of SN74LS08NSR
* Package Options Include Plastic "SmallOutline”’Packages, Ceramic Chip Carriersand Flat Packages, and Plastic and CeramicDIPs
* Dependable Texas Instruments Quality andReliability
Applications of SN74LS08NSR
These devices contain four independent 2-inputAND gates.
