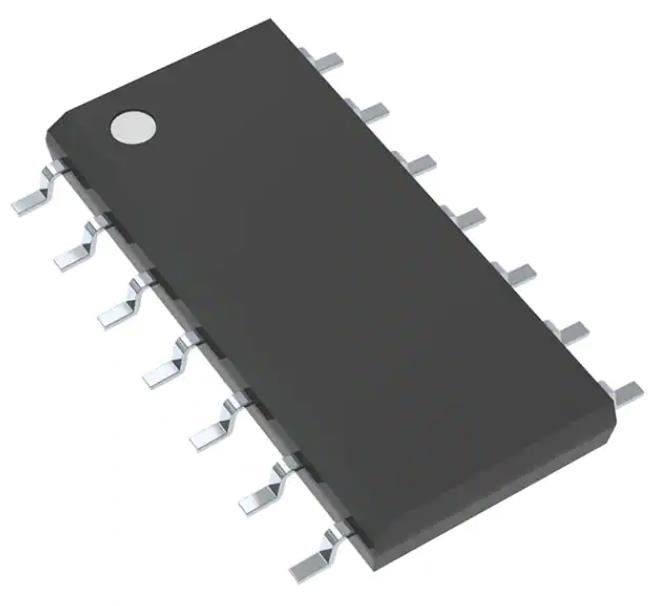

MC74LCX125DG Buffer Non-Inverting 4 Element 1 Bit per Element 3-State Output
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MC74LCX125DG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | Buffer, Non-Inverting | Number Of Elements: | 4 |
|---|---|---|---|
| Number Of Bits Per Element: | 1 | Input Type: | - |
| Output Type: | 3-State | Current - Output High, Low: | 24mA, 24mA |
| Voltage - Supply: | 2V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
MC74LCX125DG Buffer Non-Inverting 4 Element 1 Bit per Element 3-State Output
Specifications of MC74LCX125DG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | onsemi |
| Series | 74LCX |
| Package | Tube |
| Product Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 2V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | 74LCX125 |
Features of MC74LCX125DG
* Designed for 2.3 to 3.6 V VCC Operation
* 5.0 V Tolerant − Interface Capability With 5.0 V TTL Logic
* Supports Live Insertion and Withdrawal
* IOFF Specification Guarantees High Impedance When VCC = 0 V
* LVTTL Compatible
* LVCMOS Compatible
* 24 mA Balanced Output Sink and Source Capability
* Near Zero Static Supply Current in all Three Logic States (10 A) Substantially Reduces System Power Requirements
* Latchup Performance Exceeds 500 mA
* ESD Performance: Human Body Model >2000 V Machine Model >200 V
* NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
* These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of MC74LCX125DG
The MC74LCX125 is a high performance, non−inverting quad buffer operating from a 2.3 to 3.6 V supply.
Environmental & Export Classifications of MC74LCX125DG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
