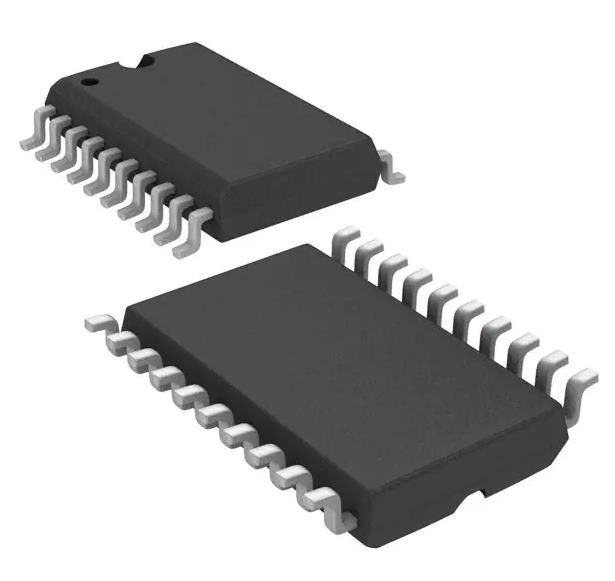

SN65LBC174ADWR Integrated Circuit Chip With 4/0 Driver RS422 RS485 20-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN65LBC174ADWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Driver | Protocol: | RS422, RS485 |
|---|---|---|---|
| Number Of Drivers/Receivers: | 4/0 | Receiver Hysteresis: | 40 MV |
| Data Rate: | 30Mbps | Voltage - Supply: | 4.75V ~ 5.25V |
| Operating Temperature: | -40°C ~ 85°C | Supplier Device Package: | 20-SOIC |
| High Light: | SN65LBC174ADWR Integrated Circuit Chip,RS485 Integrated Circuit Chip |
||
Product Description
SN65LBC174ADWR Integrated Circuit Chip With 4/0 Driver RS422, RS485 20-SOIC
IC DRIVER 4/0 20SOIC
Specifications of SN65LBC174ADWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Driver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 4/0 |
| Duplex | - |
| Receiver Hysteresis | 40 mV |
| Data Rate | 30Mbps |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | 65LBC174 |
Features of SN65LBC174ADWR
• Designed for TIA/EIA-485, TIA/EIA-422 and
• Driver Positive- and Negative-Current Limiting ISO 8482 Applications
• Power-Up and Power-Down Glitch-Free for
• Signaling Rates (1) up to 30 Mbps Line Insertion Applications
• Propagation Delay Times < 11 ns • Thermal Shutdown Protection
• Low Standby Power Consumption 1.5-mA Max
Descriptions of SN65LBC174ADWR
The SN65LBC174A and SN75LBC174A are quadruple differential line drivers with 3-state outputs, designed for TIA/EIA-485 (RS-485),
TIA/EIA-422 (RS-422), and ISO 8482 applications.
Environmental & Export Classifications of SN65LBC174ADWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
