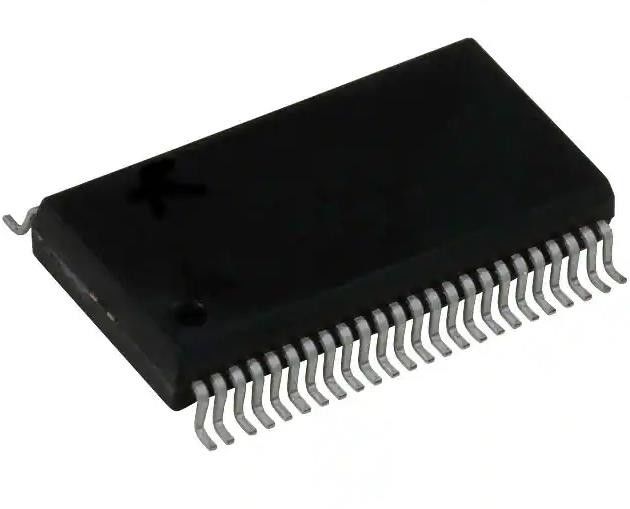

SN74LVC16244ADGGR IC Chip 4 Element 4 Bit Per Element 3-State Output 48-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC16244ADGGR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Elements: | 4 | Number Of Bits Per Element: | 4 |
|---|---|---|---|
| Output Type: | 3-State | Current - Output High, Low: | 24mA, 24mA |
| Voltage - Supply: | 1.65V ~ 3.6V | Operating Temperature: | -40°C ~ 125°C (TA) |
| High Light: | SN74LVC16244ADGGR IC Chip,48-TSSOP IC Chip |
||
Product Description
SN74LVC16244ADGGR IC Chip 4 Element 4 Bit per Element 3-State Output 48-TSSOP
SN74LVC16244ADGGR IC BUF NON-INVERT 3.6V 48TSSOP
Specifications of SN74LVC16244ADGGR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP |
| Base Product Number | 74LVC16244 |
Features of SN74LVC16244ADGGR
* Member of the Texas Instruments Widebus T Family
* Operates From 1.65 V to 3.6 V
* Inputs Accept Voltages to 5.5 V
* Max tpd of 4.1 ns at 3.3 V
* Typical VoLP (Output Ground Bounce)<0.8 V at Vcc = 3.3 V, TA = 25'C
* Typical VoHv (Output VoH Undershoot)>2 V at Vcc = 3.3 V, TA = 25°C
* loff Supports Live Insertion, Partia-Power-DownMode, and Back-Drive Protection
* Supports Mixed-Mode Signal Operation on AllPorts (5-V Input/Output Voltage With3.3-V Vcc)
* Latch-Up Performance Exceeds 250 mA PerJESD 17
* ESD Protection Exceeds JESD
-222000-V Human-Body Model (A114-A)
-1000-V Charged-Device Model (C101)
Applications of SN74LVC16244ADGGR
*Servers
*PCs and Notebooks
*Network Switches
*Wireless and Telecom Infrastructures
*TV Set-top Boxes
*Electronic Points of Sale
Environmental & Export Classifications of SN74LVC16244ADGGR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
