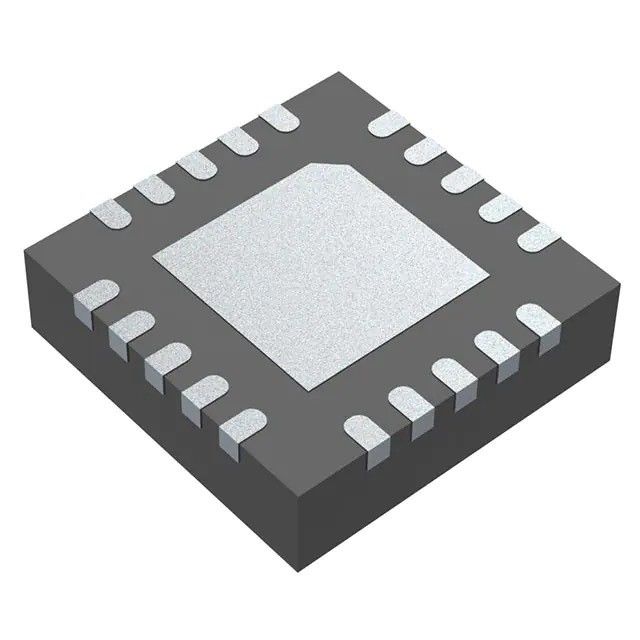

TPD8S300RUKR Integrated Circuit Chip Surge Supp 8vc 2-Circuit 20wqfn
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | TPD8S300RUKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Voltage - Clamping: | 8V |
|---|---|---|---|
| Technology: | Internal Switch | Number Of Circuits: | 2 |
| Applications: | USB OTG | Mounting Type: | Surface Mount |
| Package / Case: | 20-WFQFN Exposed Pad | Supplier Device Package: | 20-WQFN (3x3) |
Product Description
TPD8S300RUKR Integrated Circuit Chip Surge Supp 8vc 2-Circuit 20wqfn
SURGE SUPP 8VC 2-CIRCUIT 20WQFN
Specifications of TPD8S300RUKR
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Surge Suppression Ics | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Voltage - Clamping | 8V |
| Technology | Internal Switch |
| Number of Circuits | 2 |
| Applications | USB OTG |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-WQFN (3x3) |
| Voltage - Working | 3.3V |
| Base Product Number | TPD8S300 |
Features of TPD8S300RUKR
• 4-Channels of Short-to-VBUS Overvoltage Protection (CC1, CC2, SBU1, SBU2): 24-VDC Tolerant
• 8-Channels of IEC 61000-4-2 ESD Protection (CC1, CC2, SBU1, SBU2, DP_T, DM_T, DP_B, DM_B)
• CC1, CC2 Overvoltage Protection FETs 600 mA capable for passing VCONN power
• CC Dead Battery Resistors integrated for handling dead battery use case in mobile devices
• 3-mm × 3-mm WQFN Package
Applications of TPD8S300RUKR
• Laptop PC
• Tablets
• Smartphones
• Monitors and TVs
• Docking Stations
Environmental & Export Classifications of TPD8S300RUKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
