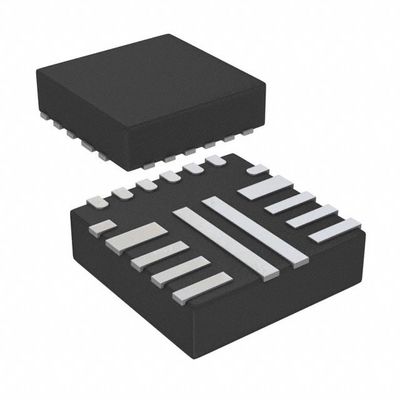

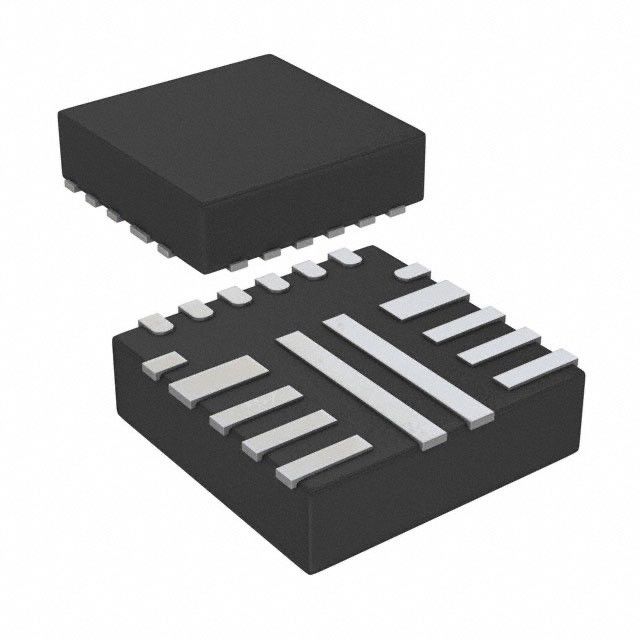

TPS56C215RNNR Integrated Circuit Chip Ic Reg Buck Adj 12a 18vqfn
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | TPS56C215RNNR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Step-Down |
|---|---|---|---|
| Output Configuration: | Positive | Topology: | Buck |
| Output Type: | Adjustable | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 17V |
Product Description
Specifications of TPS56C215RNNR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SWIFT™, D-CAP2™, Eco-Mode™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 17V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 12A |
| Frequency - Switching | 400kHz, 800kHz, 1.2MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 18-VFQFN |
| Supplier Device Package | 18-VQFN-HR (3.5x3.5) |
| Base Product Number | TPS56C215 |
Features of TPS56C215RNNR
• Integrated 13.5-mΩ and 4.5-mΩ MOSFETs
• Supports 12-A continuous IOUT
• 4.5-V start-up without external 5.0-V bias
• 0.6-V ±-1% reference voltage across full
temperature range
• 0.6-V to 5.5-V output voltage range
• Supports ceramic output capacitors
• D-CAP3TM control mode for fast transient response
• Selectable forced continuous conduction mode
(FCCM) for tight output voltage ripple or auto-
skipping Eco-mode for high light-load efficiency
• Selectable FSW of 400 kHz, 800 kHz, and 1.2 MHz
• Monotonic start-up into pre-biased outputs
• Two adjustable current limit settings with hiccup re-
start
• Optional external 5-V bias for enhanced efficiency
• Adjustable soft start with a default 1-ms soft start
time
• –40°C to 150°C operating junction temperature
• Small 3.5-mm x 3.5-mm HotRodTM QFN package
• Supported at the WEBENCH® design tool
Applications of TPS56C215RNNR
• Server, cloud-computing, storage
• Telecom and networking, point-of-load (POL)
• IPCs, factory automation, PLC, test measurement • High-end DTV
Environmental & Export Classifications of TPS56C215RNNR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
