CAHCT1G125QDCKRQ1 IC BUF NON-INVERT 5.5V 1 Element 1 Bit 3-State SC-70-5
Product Details:
Place of Origin: | original |
Brand Name: | original |
Certification: | original |
Model Number: | CAHCT1G125QDCKRQ1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | carton box |
Delivery Time: | 1-3working days |
Payment Terms: | T/T |
Supply Ability: | 100,000 |
Detail Information |
|||
Product Status: | Active | Logic Type: | Buffer, Non-Inverting |
---|---|---|---|
Number Of Elements: | 1 | Number Of Bits Per Element: | 1 |
Operating Temperature: | -40°C ~ 125°C (TJ) | Output Type: | 3-State |
Current - Output High, Low: | 8mA, 8mA | Voltage - Supply: | 3V ~ 5.5V |
Product Description

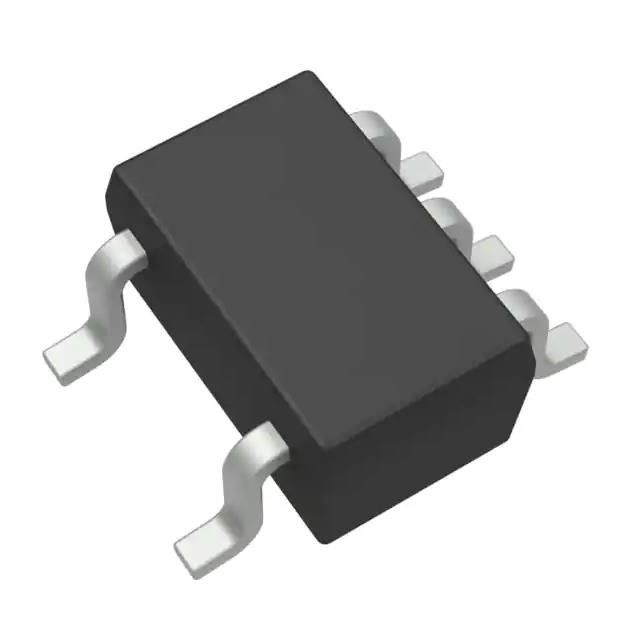

CAHCT1G125QDCKRQ1 IC BUF NON-INVERT 5.5V 1 Element 1 Bit 3-State SC-70-5
Buffer, Non-Inverting 1 Element 1 Bit per Element 3-State Output SC-70-5
Specifications of CAHCT1G125QDCKRQ1
TYPE | DESCRIPTION |
Category | Integrated Circuits (ICs) |
Logic | |
Buffers, Drivers, Receivers, Transceivers | |
Mfr | Texas Instruments |
Series | Automotive, AEC-Q100, 74AHCT |
Package | Tape & Reel (TR) |
Cut Tape (CT) | |
Product Status | Active |
Logic Type | Buffer, Non-Inverting |
Number of Elements | 1 |
Number of Bits per Element | 1 |
Input Type | - |
Output Type | 3-State |
Current - Output High, Low | 8mA, 8mA |
Voltage - Supply | 3V ~ 5.5V |
Operating Temperature | -40°C ~ 125°C (TJ) |
Mounting Type | Surface Mount |
Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
Supplier Device Package | SC-70-5 |
Base Product Number | CAHCT1G125 |
Description/ordering information of CAHCT1G125QDCKRQ1
The SN74AHCT1G125 is a single bus buffer gate/line driver with 3-state output. The output is disabled when the output-enable (OE) input is high. When OE is low, true data is passed from the A input to the Y output. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
.
Applications of CAHCT1G125QDCKRQ1
• Qualified for Automotive Applications
• ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
• Operating Range of 3 V to 5.5 V
• Max tpd of 6 ns at 5 V Low Power Consumption, 10-µA Max ICC
• ±8-mA Output Drive at 5 V
• Inputs Are TTL-Voltage Compatible
Environmental & Export Classifications of CAHCT1G125QDCKRQ1
ATTRIBUTE | DESCRIPTION |
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
REACH Status | REACH Unaffected |
ECCN | EAR99 |
HTSUS | 8542.39.0001 |
