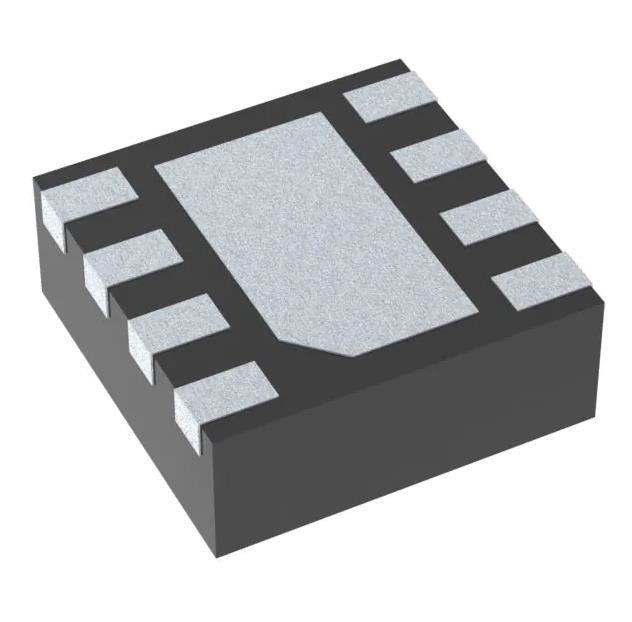

TLV62084DSGR IC Reg Buck Adjustable 0.5V 1 Output 2A 8-WFDFN Exposed Pad
Product Details:
Place of Origin: | original |
Brand Name: | original |
Certification: | original |
Model Number: | TLV62084DSGR |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | carton box |
Delivery Time: | 1-3working days |
Payment Terms: | T/T |
Supply Ability: | 100,000 |
Detail Information |
|||
Product Status: | Active | Function: | Step-Down |
---|---|---|---|
Output Configuration: | Positive | Topology: | Buck |
Output Type: | Adjustable | Number Of Outputs: | 1 |
Voltage - Input (Min): | 2.7V | Voltage - Input (Max): | 6V |
Product Description
TLV62084DSGR IC Reg Buck Adjustable 0.5V 1 Output 2A 8-WFDFN Exposed Pad
Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output 2A 8-WFDFN Exposed Pad
Specifications of TLV62084DSGR
TYPE | DESCRIPTION |
Category | Integrated Circuits (ICs) |
Power Management (PMIC) | |
Voltage Regulators - DC DC Switching Regulators | |
Mfr | Texas Instruments |
Series | DCS-Control™ |
Package | Tape & Reel (TR) |
Cut Tape (CT) | |
Product Status | Active |
Function | Step-Down |
Output Configuration | Positive |
Topology | Buck |
Output Type | Adjustable |
Number of Outputs | 1 |
Voltage - Input (Min) | 2.7V |
Voltage - Input (Max) | 6V |
Voltage - Output (Min/Fixed) | 0.5V |
Voltage - Output (Max) | 4V |
Current - Output | 2A |
Frequency - Switching | 2MHz |
Synchronous Rectifier | Yes |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 8-WFDFN Exposed Pad |
Supplier Device Package | 8-WSON (2x2) |
Base Product Number | TLV62084 |
Features of TLV62084DSGR
• DCS-Control™ Architecture for Fast Transient Regulation
• 2.5 to 6-V Input Voltage Range (TLV62080)
• 2.7 to 6-V Input Voltage Range (TLV62084, TLV62084A)
• 100% Duty Cycle for Lowest Dropout
• Power Save Mode for Light Load Efficiency
• Output Discharge Function
• Power Good Output
• Thermal Shutdown
• Available in 2 mm × 2 mm 8-Terminal WSON Package
• For Improved Features Set, see the TPS62080
• Create a Custom Design Using the TLV6208x With the WEBENCH® Power Designer
Applications of TLV62084DSGR
Environmental & Export Classifications of TLV62084DSGR
ATTRIBUTE | DESCRIPTION |
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 2 (1 Year) |
REACH Status | REACH Unaffected |
ECCN | EAR99 |
HTSUS | 8542.39.0001 |
