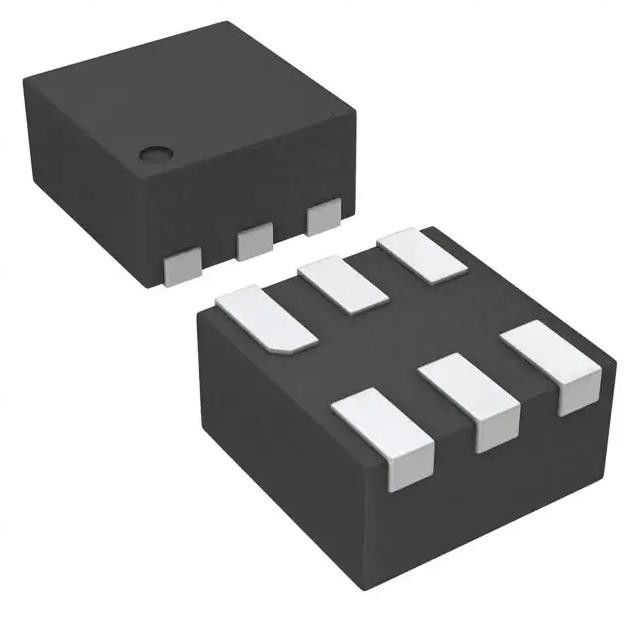

• TPS389025QDSERQ1 Integrated Circuit Chip Ic Supervisor 1 Channel 6wson
TPS389025QDSERQ1 Integrated Circuit Chip Ic Supervisor 1 Channel 6wson

TPS389025QDSERQ1 Integrated Circuit Chip Ic Supervisor 1 Channel 6wson

Product Details:

Place of Origin: original
Brand Name: original
Certification: original
Model Number: TPS389025QDSERQ1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 1-3working days
Payment Terms: T/T
Supply Ability: 100,000
Get Best Price Contact Now

Detail Information

Product Status: Active Type: Simple Reset/Power-On Reset
Number Of Voltages Monitored: 1 Voltage - Threshold: 2.5V
Output: Open Drain Or Open Collector Reset: Active Low
Mounting Type: Surface Mount Operating Temperature: -40°C ~ 125°C (TJ)

Product Description

TPS389025QDSERQ1 Integrated Circuit Chip Ic Supervisor 1 Channel 6wson



Supervisor Open Drain or Open Collector 1 Channel 6-WSON (1.5x1.5)



Specifications of TPS389025QDSERQ1





TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Power Management (PMIC)
Supervisors
Mfr Texas Instruments
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Cut Tape (CT)
Product Status Active
Type Simple Reset/Power-On Reset
Number of Voltages Monitored 1
Voltage - Threshold 2.5V
Output Open Drain or Open Collector
Reset Active Low
Reset Timeout -
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 6-WFDFN
Supplier Device Package 6-WSON (1.5x1.5)
Base Product Number TPS389025



Features of TPS389025QDSERQ1



• Qualified for Automotive Applications

• AEC-Q100 Qualified With the Following Results:

– Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range

– Device HBM ESD Classification Level 2

– Device CDM ESD Classification Level C4B

• Power-On-Reset (POR) Generator with Adjustable Delay Time: 25 μs to 30 s

• Very Low Supply Current: 2.1 μA (Typical)

• High Threshold Accuracy: 1% (max)

• Precision Hysteresis

• Fixed and Adjustable Threshold Voltages:

– Fixed Thresholds for Standard Rails: 1.2 V to 5 V

– Adjustable Down to 1.15 V

• Manual Reset (MR) Input

• Open-Drain RESET Output

• Temperature Range: –40°C to +125°C

• Package: 1.5-mm × 1.5-mm WSON



Applications of TPS389025QDSERQ1



• Infotainment Head Unit

• Hybrid/Digital Cluster

• External Amplifier

• ADAS Camera

• Automotive Gateway



Environmental & Export Classifications of TPS389025QDSERQ1



ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001



TPS389025QDSERQ1 Integrated Circuit Chip Ic Supervisor 1 Channel 6wson 0
