• TPS548A20RVER IC Buck Switching Reg Buck Adj 15a 28vqfn Step-Down
TPS548A20RVER IC Buck Switching Reg Buck Adj 15a 28vqfn Step-Down

TPS548A20RVER IC Buck Switching Reg Buck Adj 15a 28vqfn Step-Down

Product Details:

Place of Origin: original
Brand Name: original
Certification: original
Model Number: TPS548A20RVER

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 1-3working days
Payment Terms: T/T
Supply Ability: 100,000
Get Best Price Contact Now

Detail Information

Output Configuration: Positive Topology: Buck
Output Type: Adjustable Number Of Outputs: 1
Voltage - Input (Min): 1.5V Voltage - Input (Max): 20V
Voltage - Output (Min/Fixed): 0.6V Voltage - Output (Max): 5.5V

Product Description

TPS548A20RVER Integrated Circuit Chip Ic Reg Buck Adj 15a 28vqfn



Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 15A 28-VFQFN Exposed Pad



Specifications of TPS548A20RVER





TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
Mfr Texas Instruments
Series
SWIFT™, D-CAP3™, Eco-Mode™
Package Tape & Reel (TR)
Cut Tape (CT)
Product Status Active
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 1.5V
Voltage - Input (Max) 20V
Voltage - Output (Min/Fixed) 0.6V
Voltage - Output (Max) 5.5V
Current - Output 15A
Frequency - Switching Selectable
Synchronous Rectifier No
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type Surface Mount

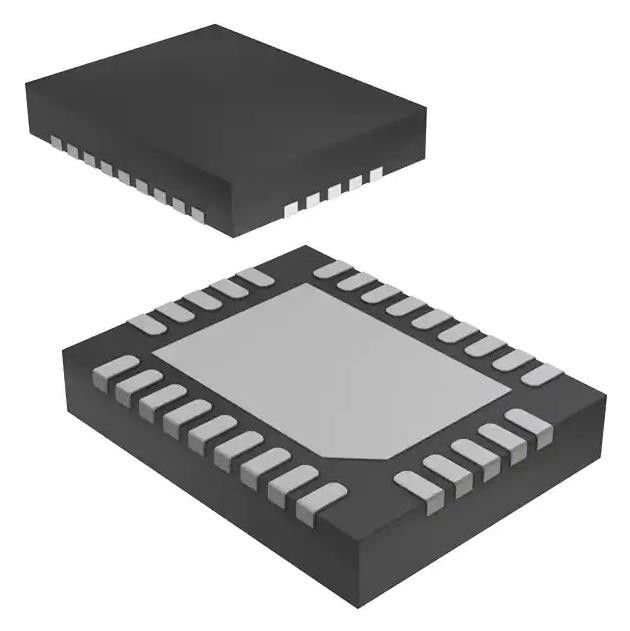

Package / Case 28-VFQFN Exposed Pad
Supplier Device Package 28-VQFN-CLIP (4.5x3.5)
Base Product Number TPS548A20





Features of TPS548A20RVER



• Integrated SWIFT™ 9.9-mΩ and 4.3-mΩ MOSFETs Support 15-A Continuous IOUT
• Wide Conversion Input Voltage Range: 1.5 V to 20 V (with Snubber)
• Output Voltage Range from 0.6 V to 5.5 V
• Supports All Ceramic Output Capacitors
• Reference Voltage: 600 mV with 0.5% Tolerance from
–40°C to 85°C ambient temperature
• D-CAP3™ Control Mode With Fast Load-Step Response
• Hiccup Over Current Protection
• Auto-Skipping Eco-Mode™ for High Light-Load Efficiency
• FCCM for Tight Output Ripple and Voltage Tolerance Requirements
• Pre-charged Startup Capability
• Eight Selectable Frequency Settings from 200 kHz to 1 MHz
• 4.5 mm x 3.5 mm, 28-Pin, VQFN-CLIP Package
• Supported at the WEBENCH™ Design Center



Applications of TPS548A20RVER



• Server, Cloud-Computing, Storage

• Telecom Networking, Point-of-Load (POL)

• IPCs, Factory Automation, PLC, Test Measurement

• Performance DSPs, FPGAs



Environmental & Export Classifications of TPS548A20RVER





ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
