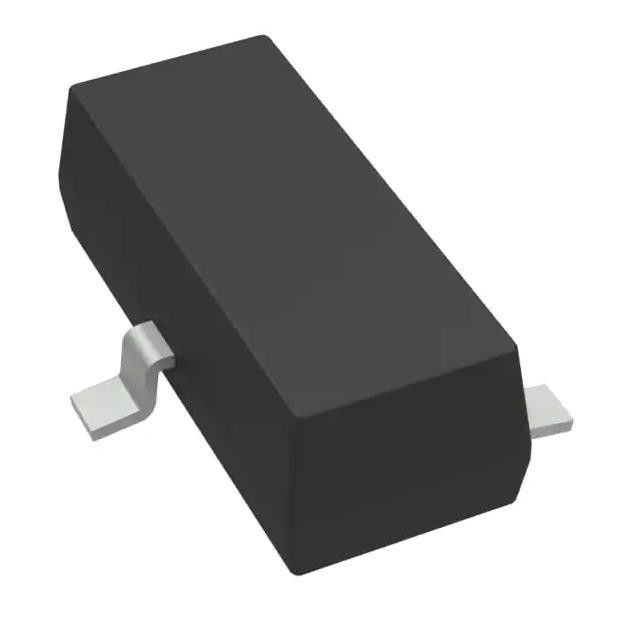

LM4040C30IDBZR Integrated Circuit Chip Ic Vref Shunt 0.5% Sot23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM4040C30IDBZR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Reference Type: | Shunt |
|---|---|---|---|
| Output Type: | Fixed | Voltage - Output (Min/Fixed): | 3V |
| Current - Output: | 15 MA | Tolerance: | ±0.5% |
| Temperature Coefficient: | 100ppm/°C | Noise - 10Hz To 10kHz: | " 35µVrms" |
Product Description
LM4040C30IDBZR Integrated Circuit Chip Ic Vref Shunt 0.5% Sot23-3
|
Shunt Voltage Reference IC Fixed 3V V ±0.5% 15 mA SOT-23-3
|
Specifications of LM4040C30IDBZR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Reference Type | Shunt |
| Output Type | Fixed |
| Voltage - Output (Min/Fixed) | 3V |
| Current - Output | 15 mA |
| Tolerance | ±0.5% |
| Temperature Coefficient | 100ppm/°C |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | 35µVrms |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 82 µA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | LM4040 |
Features of LM4040C30IDBZR
Applications of LM4040C30IDBZR
• Data-Acquisition Systems
• Power Supplies and Power-Supply Monitors
• Instrumentation and Test Equipment
• Process Controls
• Precision Audio
• Automotive Electronics
• Energy Management
• Battery-Powered Equipment
Environmental & Export Classifications of LM4040C30IDBZR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
1 Features
1• Fixed Output Voltages of 2.048 V, 2.5 V, 3 V,
4.096 V, 5 V, 8.192 V, and 10 V
• Tight Output Tolerances and Low Temperature
Coefficient
– Max 0.1%, 100 ppm/°C – A Grade
– Max 0.2%, 100 ppm/°C – B Grade
– Max 0.5%, 100 ppm/°C – C Grade
– Max 1.0%, 150 ppm/°C – D Grade
• Low Output Noise: 35 μVRMS Typ
• Wide Operating Current Range: 45 μA Typ to 15
mA
• Stable With All Capacitive Loads; No Output
Capacitor Required
• Available in Extended Temperature Range: –40°C
to 125°C
