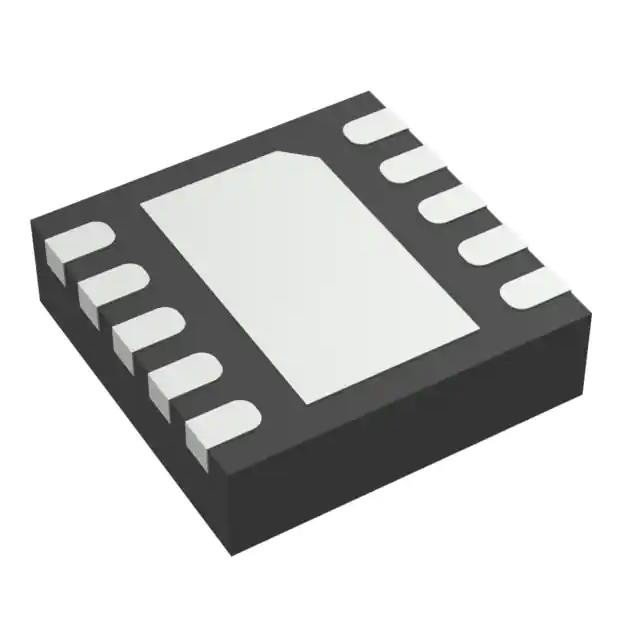

TPS259261DRCR Ic Electronic Fuse Regulator 5A 15% 10vson 10-VSON (3x3)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS259261DRCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Accuracy: | ±15% | Voltage - Input: | 4.5V ~ 13.8V |
|---|---|---|---|
| Current - Output: | 5A | Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 10-VFDFN Exposed Pad |
| Supplier Device Package: | 10-VSON (3x3) | Base Product Number: | TPS259261 |
Product Description
TPS259261DRCR Ic Electronic Fuse Regulator 5A 15% 10vson 10-VSON (3x3)
|
Electronic Fuse Regulator 5A 10-VSON (3x3)
|
Specifications of TPS259261DRCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Current Regulation/Management | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Electronic Fuse |
| Sensing Method | - |
| Accuracy | ±15% |
| Voltage - Input | 4.5V ~ 13.8V |
| Current - Output | 5A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| Base Product Number | TPS259261 |
Features of TPS259261DRCR
• 12-V eFuse – TPS25926x
• 5-V eFuse – TPS25925x
• Integrated 30-mΩ Pass MOSFET
• Fixed Over-Voltage Clamp:
– 6.1-V Clamp - TPS25925x
– 15-V Clamp - TPS25926x
• 2-A to 5-A Adjustable ILIMIT ( 15% Accuracy)
• Programmable VOUT Slew Rate, UVLO
• Built-in Thermal Shutdown
• UL 2367 Recognized – File No. E339631*
– *RILIM ≤ 130 kΩ (5 A maximum)
• Safe During Single Point Failure Test (UL60950)
• Small Foot Print – 10L (3 mm x 3 mm) VSON
Applications of TPS259261DRCR
• HDD and SSD Drives
• Set Top Boxes
• Servers and AUX Supplies
• PCI and PCIe Cards
• Adapter Powered Devices
Environmental & Export Classifications of TPS259261DRCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
