• NRF52832-CIAA-R IC Rf Txrx+Mcu Ism>1ghz 50xfbga RF and Wireless
NRF52832-CIAA-R IC Rf Txrx+Mcu Ism>1ghz 50xfbga RF and Wireless

NRF52832-CIAA-R IC Rf Txrx+Mcu Ism>1ghz 50xfbga RF and Wireless

Product Details:

Place of Origin: original
Brand Name: original
Certification: original
Model Number: NRF52832-CIAA-R

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 1-3working days
Payment Terms: T/T
Supply Ability: 100,000
Get Best Price Contact Now

Detail Information

Product Status: Active Digi-Key Programmable: Not Verified
Type: TxRx + MCU RF Family/Standard: General ISM > 1GHz
Protocol: Bluetooth V5.3 Modulation: GFSK
Frequency: 2.4GHz Data Rate (Max): 2Mbps

Product Description

NRF52832-CIAA-R IC Rf Txrx+Mcu Ism>1ghz 50xfbga RF and Wireless

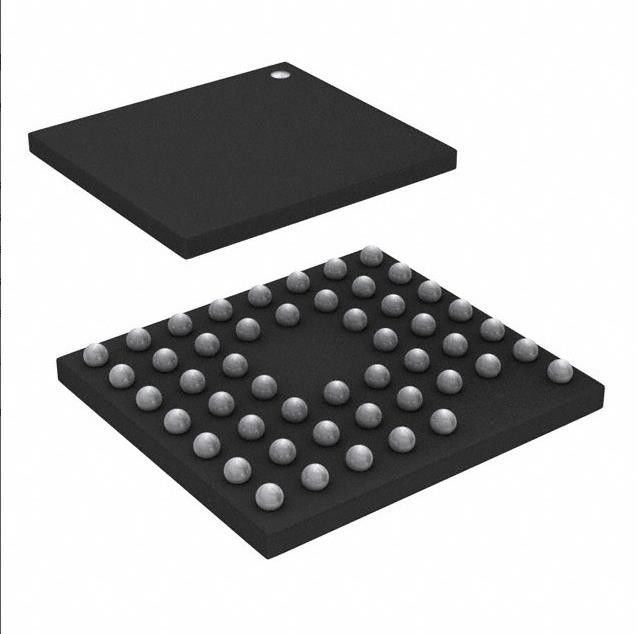

IC RF TxRx + MCU General ISM > 1GHz Bluetooth v5.3 2.4GHz 50-XFBGA, WLCSP



Specifications of NRF52832-CIAA-R



TYPE DESCRIPTION
Category RF and Wireless
RF Transceiver ICs
Mfr Nordic Semiconductor ASA
Series nRF52
Package Tape & Reel (TR)
Cut Tape (CT)
Product Status Active
Digi-Key Programmable Not Verified
Type TxRx + MCU
RF Family/Standard General ISM > 1GHz
Protocol Bluetooth v5.3
Modulation GFSK
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 4dBm
Sensitivity -96dBm
Memory Size 512kB Flash, 64kB RAM
Serial Interfaces I²S, SPI, UART
GPIO 32
Voltage - Supply 1.7V ~ 3.6V
Current - Receiving 5.4mA
Current - Transmitting 7.5mA
Operating Temperature -
Mounting Type Surface Mount
Package / Case 50-XFBGA, WLCSP
Supplier Device Package 50-WLCSP (2.96x3.23)
Base Product Number NRF52832





Features of NRF52832-CIAA-R



• 2.4 GHz transceiver

• -96 dBm sensitivity in Bluetooth® low energy mode

• Supported data rates: 1 Mbps, 2 Mbps Bluetooth® low energy mode

• -20 to +4 dBm TX power, configurable in 4 dB steps

• On-chip balun (single-ended RF

• 5.3 mA peak current in TX (0 dBm)

• 5.4 mA peak current in RX

• RSSI (1 dB resolution)

• ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz

• 215 EEMBC CoreMark® score running from flash memory

• 58 μA/MHz running from flash memory

• 51.6 μA/MHz running from RAM

• Data watchpoint and trace (DWT), embedded trace macrocell (ETM), and instrumentation trace macrocell (ITM)

• Serial wire debug (SWD)

• Trace port

• Flexible power management

• 1.7 V–3.6 V supply voltage range

• Fully automatic LDO and DC/DC regulator system

• Fast wake-up using 64 MHz internal oscillator

• 0.3 μA at 3 V in System OFF mode

• 0.7 μA at 3 V in System OFF mode with full 64 kB RAM retention

• 1.9 μA at 3 V in System ON mode, no RAM retention, wake on RTC

• Memory

• 512 kB flash/64 kB RAM

• 256 kB flash/32 kB RAM

• Nordic SoftDevice ready

• Support for concurrent multi-protocol

• Type 2 near field communication (NFC-A) tag with wakeup-on-field and touchto-pair capabilities

• 12-bit, 200 ksps ADC - 8 configurable channels with programmable gain

• 64 level comparator

• 15 level low power comparator with wakeup from System OFF mode

• Temperature sensor

• 32 general purpose I/O pins

• 3x 4-channel pulse width modulator (PWM) unit with EasyDMA

• Digital microphone interface (PDM)

• 5x 32-bit timer with counter mode

• Up to 3x SPI master/slave with EasyDMA

• Up to 2x I2C compatible 2-wire master/slave

• I2S with EasyDMA

• UART (CTS/RTS) with EasyDMA

• Programmable peripheral interconnect (PPI)

• Quadrature decoder (QDEC)

• AES HW encryption with EasyDMA

• Autonomous peripheral operation without CPU intervention using PPI and EasyDMA

• 3x real-time counter (RTC)

• Single crystal operation

• Package variants

• QFN48 package, 6 × 6 mm

• WLCSP package, 3.0 × 3.2 mm



Applications of NRF52832-CIAA-R



• Internet of Things (IoT)

• Home automation

• Sensor networks

• Building automation

• Industrial • Retail

• Personal area networks

• Health/fitness sensor and monitor devices

• Medical devices

• Key fobs and wrist watches

• Interactive entertainment devices

• Remote controls

• Gaming controllers

• Beacons • A4WP wireless chargers and devices

• Remote control toys

• Computer peripherals and I/O devices

• Mouse • Keyboard

• Multi-touch trackpad

• Gamin



Environmental & Export Classifications of  NRF52832-CIAA-R



ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
