• TPA6132A2RTER Amplifier IC Headphones Ic Amp Class Ab Ster 25mw 16wqfn
TPA6132A2RTER Amplifier IC Headphones Ic Amp Class Ab Ster 25mw 16wqfn

TPA6132A2RTER Amplifier IC Headphones Ic Amp Class Ab Ster 25mw 16wqfn

Product Details:

Place of Origin: original
Brand Name: original
Certification: original
Model Number: TPA6132A2RTER

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 1-3working days
Payment Terms: T/T
Supply Ability: 100,000
Get Best Price Contact Now

Detail Information

Mfr: Texas Instruments Series: DirectPath™
Product Status: Active Type: Class AB
Output Type: Headphones, 2-Channel (Stereo) Max Output Power X Channels @ Load: 25mW X 2 @ 16Ohm
Voltage - Supply: 2.3V ~ 5.5V Mounting Type: Surface Mount

Product Description

TPA6132A2RTER Amplifier IC Headphones Ic Amp Class Ab Ster 25mw 16wqfn

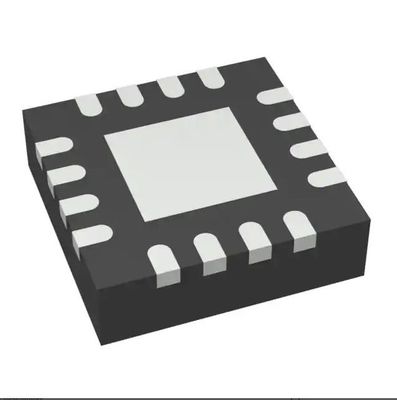

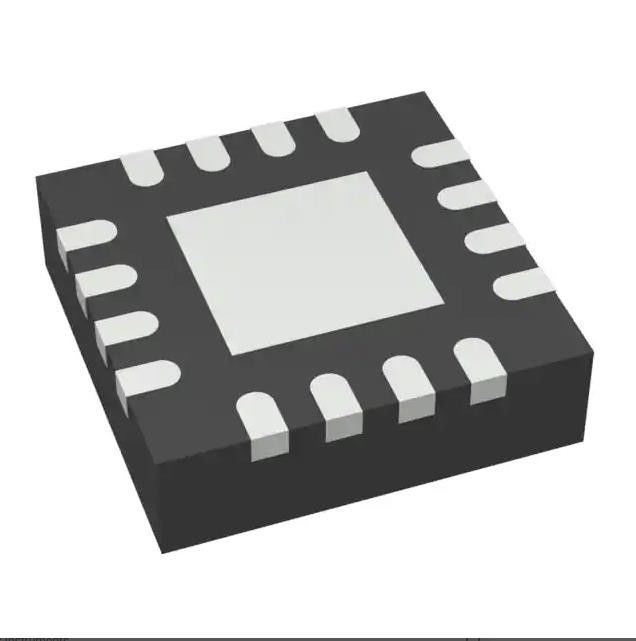

Amplifier IC Headphones, 2-Channel (Stereo) Class AB 16-WQFN (3x3)



Specifications of TPA6132A2RTER



TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Linear
Amplifiers
Audio Amplifiers
Mfr Texas Instruments
Series DirectPath™
Package Tape & Reel (TR)
Cut Tape (CT)
Product Status Active
Type Class AB
Output Type Headphones, 2-Channel (Stereo)
Max Output Power x Channels @ Load 25mW x 2 @ 16Ohm
Voltage - Supply 2.3V ~ 5.5V
Features Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
Mounting Type Surface Mount
Operating Temperature -40°C ~ 85°C (TA)
Supplier Device Package 16-WQFN (3x3)
Package / Case 16-WFQFN Exposed Pad
Base Product Number TPA6132





Features of TPA6132A2RTER



• Patented DirectPath™ Technology Eliminates Need for DC-Blocking Capacitors – Outputs Biased at 0 V – Excellent Low Frequency Fidelity

• Active Click and Pop Suppression

• 2.1 mA Typical Supply Current

• Fully Differential or Single-Ended Inputs – Built-In Resistors Reduces Component Count – Improves System Noise Performance

• Constant Maximum Output Power from 2.3 V to 5.5 V Supply – Simplifies Design to Prevent Acoustic Shock

• Improved RF Noise Immunity

• MicrosoftTM Windows VistaTM Compliant

• High Power Supply Noise Rejection – 100 dB PSRR at 217 Hz – 90 dB PSRR at 10 kHz

• Wide Power Supply Range: 2.3 V to 5.5 V

• Gain Settings: –6 dB, 0 dB, 3 dB, and 6 dB

• Short-Circuit and Thermal-Overload Protection

• 8 kV HBM ESD Protected Outputs

• Small Package Available – 16-Pin, 3 mm × 3 mm Thin QFN



Applications of TPA6132A2RTER



• Smart Phones / Cellular Phones

• Notebook Computers

• CD / MP3 Players

• Portable Gaming



Environmental & Export Classifications of  TPA6132A2RTER



ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
