Part No: MP4560DQ-LF-Z Number Of Outputs: 1
Voltage - Input (Min): 3.8V Voltage - Input (Max): 55V
Voltage - Output (Min/Fixed): 52v

Product Description

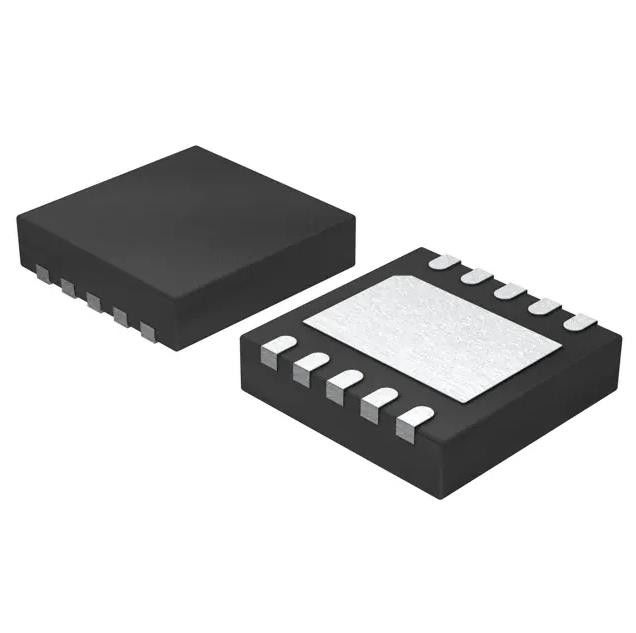

 MP4560DQ-LF-Z Integrated Circuit Chip 0.8V 1 Output 2A 10-VFDFN 3.8V



Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2A 10-VFDFN Exposed Pad



The MP4560 is a high frequency step-down switching regulator with integrated internal highside high voltage power MOSFET. It provides 2A
output with current mode control for fast loop response and easy compensation.



Features of MP4560DQ-LF-Z



 Wide 3.8V to 55V Operating Input Range
 250mΩ Internal Power MOSFET
 Up to 2MHz Programmable Switching
Frequency
 140μA Quiescent Current
 Ceramic Capacitor Stable
 Internal Soft-Start
 Up to 95% Efficiency
 Output Adjustable from 0.8V to 52V
 Available in 3x3 10-Pin QFN and SOIC8
with Exposed Pad Packages



Specifications of MP4560DQ-LF-Z



Mfr
Monolithic Power Systems Inc.
Series
-
Product
MP4560DQ-LF-Z
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
3.8V
Voltage - Input (Max)
55V
Voltage - Output (Min/Fixed)
0.8V
Voltage - Output (Max)
52V
Current - Output
2A
Frequency - Switching
Up to 2MHz
Synchronous Rectifier
No
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
10-VFDFN Exposed Pad
Supplier Device Package
10-QFN (3x3)
Base Product Number
MP4560



range (−10 ̊

Environmental & Export Classifications


wh avck-

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001



Application of MP4560DQ-LF-Z



 High Voltage Power Conversion
 Automotive Systems
 Industrial Power Systems
 Distributed Power Systems
 Battery Powered Systems
