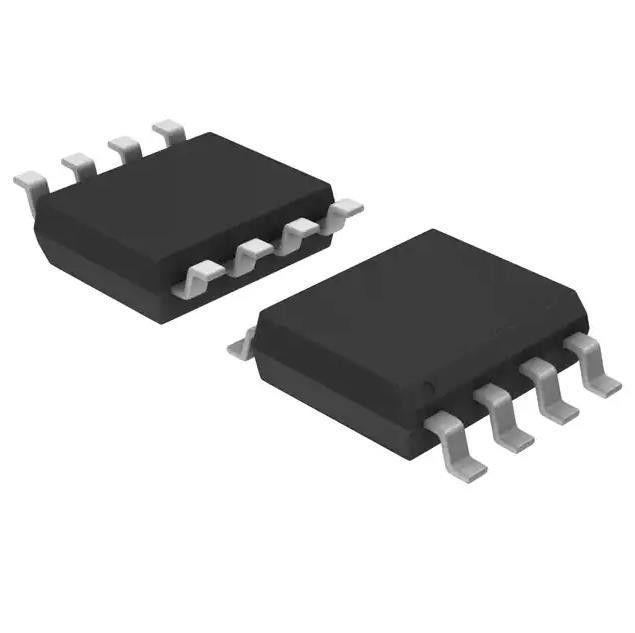

• MIC2025-1YM-TR Integrated Circuit Chip 1:1 N-Channel 500mA 8-SOIC
MIC2025-1YM-TR Integrated Circuit Chip 1:1 N-Channel 500mA 8-SOIC

MIC2025-1YM-TR Integrated Circuit Chip 1:1 N-Channel 500mA 8-SOIC

Product Details:

Place of Origin: Original
Brand Name: Original
Certification: Original
Model Number: MIC2025-1YM-TR

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 1-3working days
Payment Terms: T/T
Supply Ability: 100,000
Get Best Price Contact Now

Detail Information

Part No: MIC2025-1YM-TR Number Of Outputs: 2
Ratio - Input:Output: 1:1 Voltage - Load: 2.7V ~ 5.5V
Current - Output (Max): 500mA Rds On (Typ): 90mOhm

Product Description

 MIC2025-1YM-TR Integrated Circuit Chip 1:1 N-Channel 500mA 8-SOIC



Power Switch/Driver 1:1 N-Channel 500mA 8-SOIC



The MIC2025 and MIC2075 are high-side MOSFET switches optimized for general-purpose power distribution requiring circuit protection.


Features of MIC2025-1YM-TR



• 140 mΩ Maximum On-Resistance
• 2.7V to 5.5V Operating Range
• 500 mA Minimum Continuous Output Current
• Short-Circuit Protection with Thermal Shutdown
• Fault Status Flag with 3 ms Filter Eliminates False
Assertions
• Undervoltage Lockout
• Reverse Current Flow Blocking (No “Body Diode”)
• Circuit Breaker Mode (MIC2075) Reduces Power
Consumption
• Logic-Compatible Input
• Soft-Start Circuit
• Low Quiescent Current
• Pin Compatible with MIC2525
• UL File #E179633



Specifications of MIC2025-1YM-TR



Product
MIC2025-1YM-TR
Switch Type
General Purpose
Number of Outputs
2
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
500mA
Rds On (Typ)
90mOhm
Input Type
Non-Inverting
Features
Slew Rate Controlled, Status Flag
Fault Protection
Current Limiting (Fixed), Over Temperature, UVLO
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Base Product Number
MIC2025



range (−10 ̊

Environmental & Export Classifications


wh avck-

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001



Application of MIC2025-1YM-TR



• USB Peripherals
• General Purpose Power Switching
• ACPI Power Distribution
• Notebook PCs
• PDAs
• PC Card Hot Swap
