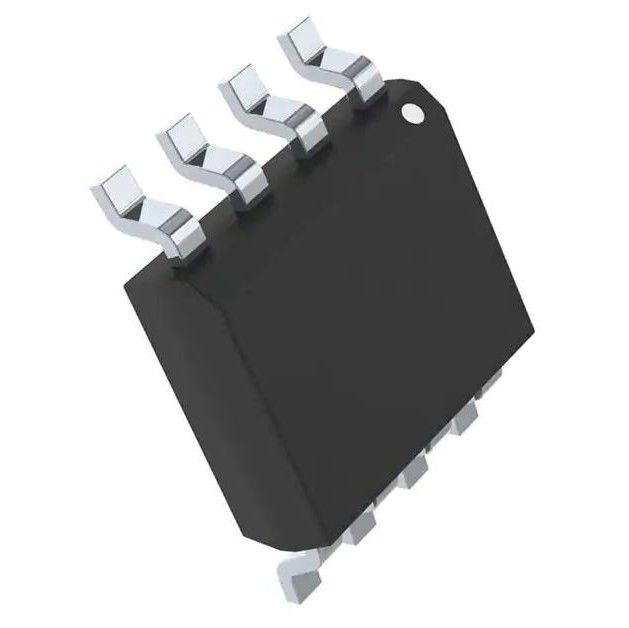

MC34063ADR2G Integrated Circuit Chip 1.25V 1 Output 1.5A 8-SOIC
Product Details:
Place of Origin: | Original |
Brand Name: | Original |
Certification: | Original |
Model Number: | MC34063ADR2G |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | carton box |
Delivery Time: | 1-3working days |
Payment Terms: | T/T |
Supply Ability: | 100,000 |
Detail Information |
|||
Part No: | MC34063ADR2G | Number Of Outputs: | 1 |
---|---|---|---|
Voltage - Input (Min): | 3V | Voltage - Input (Max): | 40V |
Voltage - Output (Min/Fixed): | 1.25V | Frequency - Switching: | 100kHz |
Product Description
MC34063ADR2G Integrated Circuit Chip 1.25V 1 Output 1.5A 8-SOIC
Buck Switching Regulator IC Positive Adjustable 1.25V 1 Output 1.2A 8-SOIC (0.154", 3.90mm Width)
The MC34063A Series is a monolithic control circuit containing the
primary functions required for DC−to−DC converters. These devices
consist of an internal temperature compensated reference, comparator,
controlled duty cycle oscillator with an active current limit circuit,
driver and high current output switch. This series was specifically
designed to be incorporated in Step−Down and Step−Up and
Voltage−Inverting applications with a minimum number of external
components. Refer to Application N
Features of MC34063ADR2G
• Operation from 3.0 V to 40 V Input
• Low Standby Current
• Current Limiting
• Output Switch Current to 1.5 A
• Output Voltage Adjustable
• Frequency Operation to 100 kHz
• Precision 2% Reference
• NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Specifications of MC34063ADR2G
Product
|
MC34063ADR2G
|
Function
|
Step-Up, Step-Down
|
Output Configuration
|
Positive or Negative
|
Topology
|
Buck, Boost
|
Output Type
|
Adjustable
|
Number of Outputs
|
1
|
Voltage - Input (Min)
|
3V
|
Voltage - Input (Max)
|
40V
|
Voltage - Output (Min/Fixed)
|
1.25V
|
Voltage - Output (Max)
|
40V (Switch)
|
Current - Output
|
1.5A (Switch)
|
Frequency - Switching
|
100kHz
|
Synchronous Rectifier
|
No
|
Operating Temperature
|
0°C ~ 70°C (TA)
|
Mounting Type
|
Surface Mount
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
Supplier Device Package
|
8-SOIC
|
Base Product Number
|
MC34063
|
range (−10 ̊
Environmental & Export Classifications
with avck-
ATTRIBUTE | DESCRIPTION |
---|---|
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
REACH Status | REACH Unaffected |
ECCN | EAR99 |
HTSUS | 8542.39.0001 |
