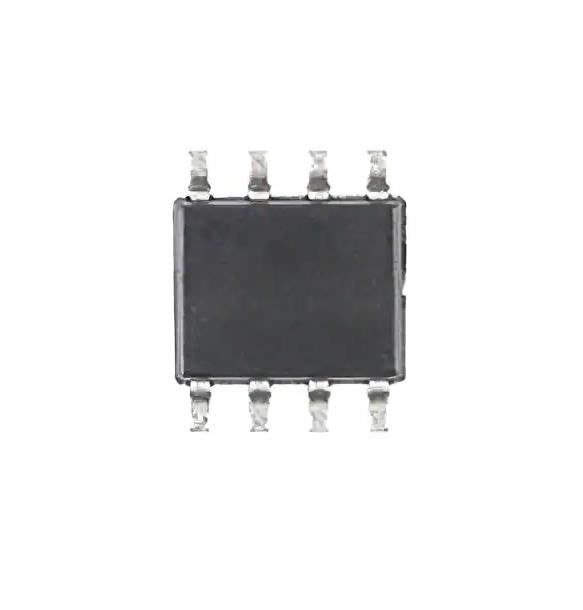

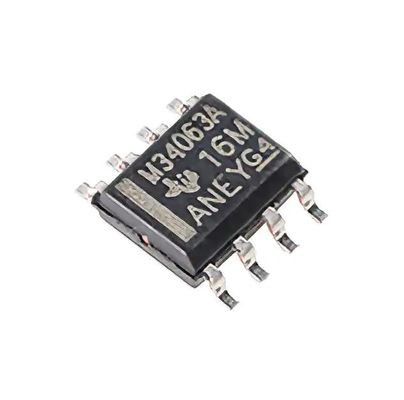

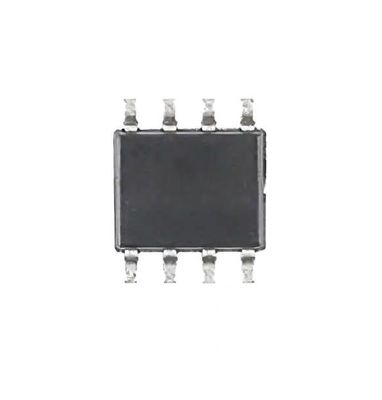

MC34063ADR Integrated Circuit Chip 1.25V 1 Output 1.2A 8-SOIC 33kHz

MC34063ADR Integrated Circuit Chip 1.25V 1 Output 1.2A 8-SOIC 33kHz

Product Details:

Place of Origin: Original
Brand Name: Original
Certification: Original
Model Number: MC34063ADR

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 1-3working days
Payment Terms: T/T
Supply Ability: 100,000
Get Best Price Contact Now

Detail Information

Part No: MC34063ADR Number Of Outputs: 1
Voltage - Input (Min): 3V Voltage - Input (Max): 32V
Voltage - Output (Min/Fixed): 1.25V Frequency - Switching: 33kHz

Product Description

 MC34063ADR Integrated Circuit Chip 1.25V 1 Output 1.2A 8-SOIC 33kHz



Buck Switching Regulator IC Positive Adjustable 1.25V 1 Output 1.2A 8-SOIC (0.154", 3.90mm Width)



Features of MC34063ADR



MC34063ADR is a single-chip DC-DC converter integrated circuit with a reference
voltage source for temperature compensation (1.25V), comparator, oscillator,
driver and high current output switch tube which can effectively limit the current
and control the working cycle. With a few external components, the DC-DC converter
with boost, buck and voltage reversal can be formed.
The circuit is packaged in SOP8.



Specifications of MC34063ADR



Product
MC34063ADR
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
3V
Voltage - Input (Max)
32V
Voltage - Output (Min/Fixed)
1.25V
Voltage - Output (Max)
32V
Current - Output
1.2A
Frequency - Switching
33kHz
Synchronous Rectifier
No
Operating Temperature
0°C ~ 70°C (TA)
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOP



range (−10 ̊

Environmental & Export Classifications


with avck-

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001



APPLICATION of MC34063ADR


● Battery Chargers
● NICs / Switches / Hubs
● ADSL Modems
● Negative Voltage Power Supplies



  MC34063ADR Integrated Circuit Chip 1.25V 1 Output 1.2A 8-SOIC 33kHz 0
