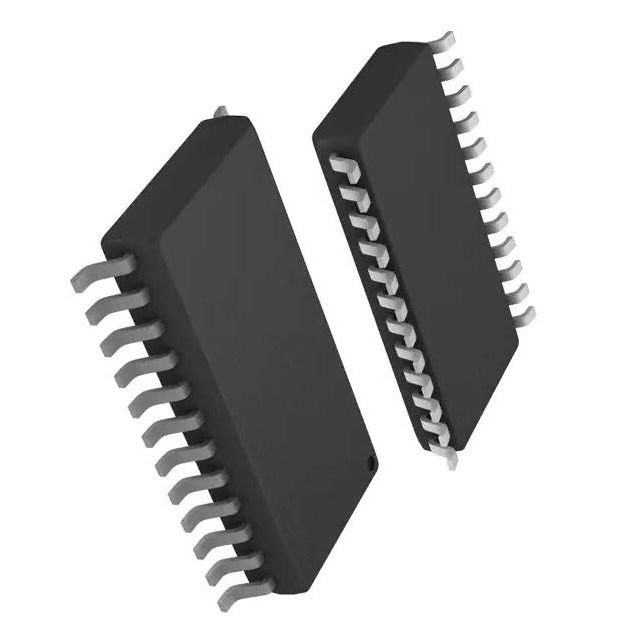

MC33035DWR2G Integrated Circuit Chip Motor Driver Analog 24-SOIC 10V ~ 30V
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | MC33035DWR2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | MC33035DWR2G | Voltage - Supply: | 10V ~ 30V |
|---|---|---|---|
| Operating Temperature: | -40°C ~ 85°C (TA) | Package / Case: | 24-SOIC |
| Supplying Sensor Power: | 6.25 V | Mounting Type: | Surface Mount |
Product Description
MC33035DWR2G Integrated Circuit Chip Motor Driver Analog 24-SOIC 10V ~ 30V
IC MOTOR DRIVER 10V-30V 24SOIC Motor Driver Analog 24-SOIC
The MC33035 is a high performance second generation monolithic
brushless DC motor controller containing all of the active functions
required to implement a full featured open loop, three or four phase
motor control system. This device consists of a rotor position decoder
for proper commutation sequencing, temperature compensated
reference capable of supplying sensor power, frequency
programmable sawtooth oscillator, three open collector top drivers,
and three high current totem pole bottom drivers ideally suited for
driving power MOSFETs.
Features of MC33035DWR2G
• 10 to 30 V Operation
• Undervoltage Lockout
• 6.25 V Reference Capable of Supplying Sensor Power
• Fully Accessible Error Amplifier for Closed Loop Servo
Applications
• High Current Drivers Can Control External 3−Phase MOSFET
Bridge
• Cycle−By−Cycle Current Limiting
• Pinned−Out Current Sense Reference
• Internal Thermal Shutdown
• Selectable 60°/300° or 120°/240° Sensor Phasings
• Can Efficiently Control Brush DC Motors with External MOSFET
H−Bridge
• NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• Pb−Free Packages are Available
Specifications of MC33035DWR2G
|
Mfr
|
onsemi
|
|
Series
|
-
|
|
Product
|
MC33035DWR2G
|
| Package | Tape & Reel |
|
Motor Type - Stepper
|
-
|
|
Motor Type - AC, DC
|
Brushless DC (BLDC)
|
|
Function
|
Controller - Commutation, Direction Management
|
|
Output Configuration
|
Pre-Driver - Half Bridge (3)
|
|
Interface
|
Analog
|
|
Technology
|
-
|
|
Step Resolution
|
-
|
|
Applications
|
General Purpose
|
|
Current - Output
|
-
|
|
Voltage - Supply
|
10V ~ 30V
|
|
Voltage - Load
|
-
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
24-SOIC (0.295", 7.50mm Width)
|
|
Supplier Device Package
|
24-SOIC
|
|
Base Product Number
|
MC33035
|
range (−10 ̊
Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
MC33035DWR2G
