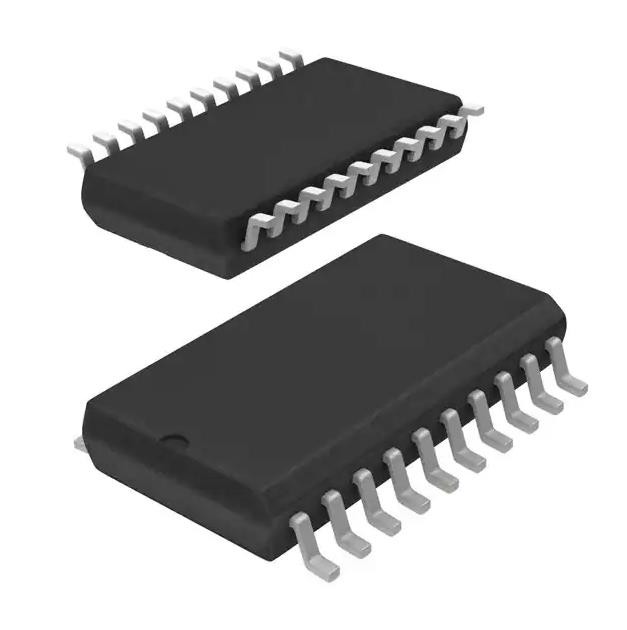

MC74LCX541DWG Integrated Circuit Chip 8 Bit per Element 3-State Output 20-SOIC
Product Details:
| Place of Origin: | Original |
| Brand Name: | onsemi |
| Certification: | Original |
| Model Number: | MC74LCX541DWG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | MC74LCX541DWG | Number Of Elements: | 1 |
|---|---|---|---|
| Number Of Bits Per Element: | 8 | Output Type: | 3-State |
| Voltage - Supply: | 2V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C (TA) |
| Supplier Device Package: | 20-SOIC | Current - Output High, Low: | 24mA |
Product Description
MC74LCX541DWG Integrated Circuit Chip 8 Bit per Element 3-State Output 20-SOIC
Buffer, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-SOIC
The MC74LCX541 is a high performance, non−inverting octal
buffer operating from a 2.3 to 3.6 V supply. This device is similar in
function to the MC74LCX244, while providing flow through
architecture. High impedance TTL compatible inputs significantly
reduce current loading to input drivers while TTL compatible outputs
offer improved switching noise performance.
Features of MC74LCX541DWG
• Designed for 2.3 to 3.6 V VCC Operation
• 5 V Tolerant − Interface Capability With 5 V TTL Logic
• Supports Live Insertion and Withdrawal
• IOFF Specification Guarantees High Impedance When VCC = 0 V
• LVTTL Compatible
• LVCMOS Compatible
• 24 mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current in All Three Logic States (10 A)
Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500 mA
• ESD Performance:
♦ Human Body Model > 2000 V
♦ Machine Model > 200 V
• NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Specifications of MC74LCX541DWG
|
Mfr
|
onsemi
|
|
Series
|
74LCX
|
|
Product Status
|
Active
|
|
Logic Type
|
Buffer, Non-Inverting
|
|
Number of Elements
|
1
|
|
Number of Bits per Element
|
8
|
|
Input Type
|
-
|
|
Output Type
|
3-State
|
|
Current - Output High, Low
|
24mA, 24mA
|
|
Voltage - Supply
|
2V ~ 3.6V
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
20-SOIC (0.295", 7.50mm Width)
|
|
Supplier Device Package
|
20-SOIC
|
|
Base Product Number
|
74LCX541
|
range (−10 ̊
Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
MC74LCX541DWG
