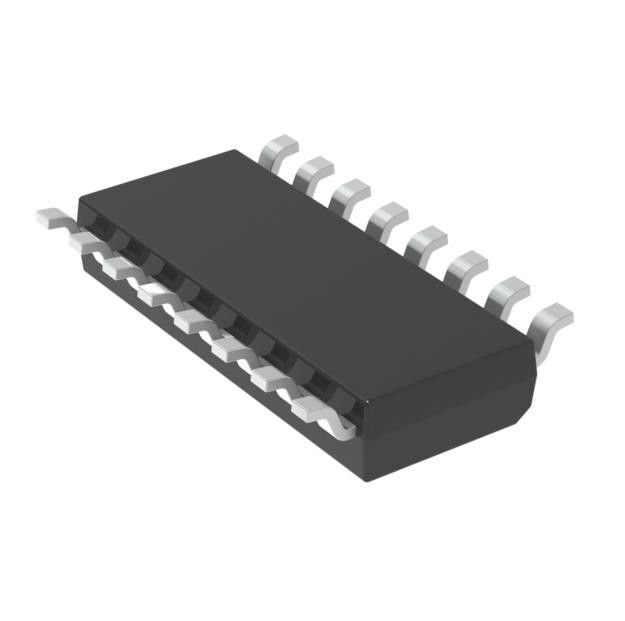

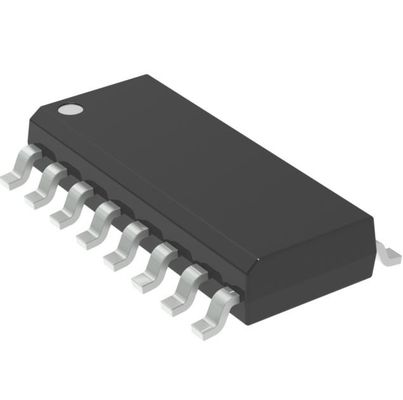

MC74LCX138DR2G Decoder / Demultiplexer 1 x 3:8 16-SOIC 2V ~ 3.6V 24mA
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | MC74LCX138DR2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | MC74LCX138DR2G | Circuit: | 1 X 3:8 |
|---|---|---|---|
| Independent Circuits: | 1 | Current - Output High, Low: | 24mA |
| Voltage Supply Source: | Single Supply | Voltage - Supply: | 2V ~ 3.6V |
| Operating Temperature: | -40°C ~ 85°C | Supplier Device Package: | 16-SOIC |
Product Description
MC74LCX138DR2G Decoder / Demultiplexer 1 x 3:8 16-SOIC 2V ~ 3.6V 24mA
Decoder/Demultiplexer 1 x 3:8 16-SOIC
The MC74LCX138 is a high performance, 3−to−8
decoder/demultiplexer operating from a 2.3 to 3.6 V supply. High
impedance TTL compatible inputs significantly reduce current
loading to input drivers while TTL compatible outputs offer improved
switching noise performance. A VI specification of 5.5 V allows
MC74LCX138 inputs to be safely driven from 5 V devices. The
MC74LCX138 is suitable for memory address decoding and other
TTL level bus−oriented applications.
Features of MC74LCX138DR2G
Designed for 2.3 V to 3.6 V VCC Operation
5 V Tolerant Inputs − Interface Capability With 5 V TTL Logic
LVTTL Compatible
LVCMOS Compatible
24 mA Balanced Output Sink and Source Capability
Near Zero Static Supply Current (10 A) Substantially Reduces
System Power Requirements
Latchup Performance Exceeds 500 mA
ESD Performance: Human Body Model >2000 V
Machine Model >200 V
NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Specifications of MC74LCX138DR2G
|
Mfr
|
onsemi
|
|
Series
|
74LCX
|
| Package | Tape & Reel (TR) |
|
Product Status
|
Active
|
|
Type
|
Decoder/Demultiplexer
|
|
Circuit
|
1 x 3:8
|
|
Independent Circuits
|
1
|
|
Current - Output High, Low
|
24mA, 24mA
|
|
Voltage Supply Source
|
Single Supply
|
|
Voltage - Supply
|
2V ~ 3.6V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
16-SOIC
|
|
Base Product Number
|
74LCX138
|
range (−10 ̊
Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
APPLICATIONS of MC74LCX138DR2G
• Automotive USB charge
• Driver monitoring
