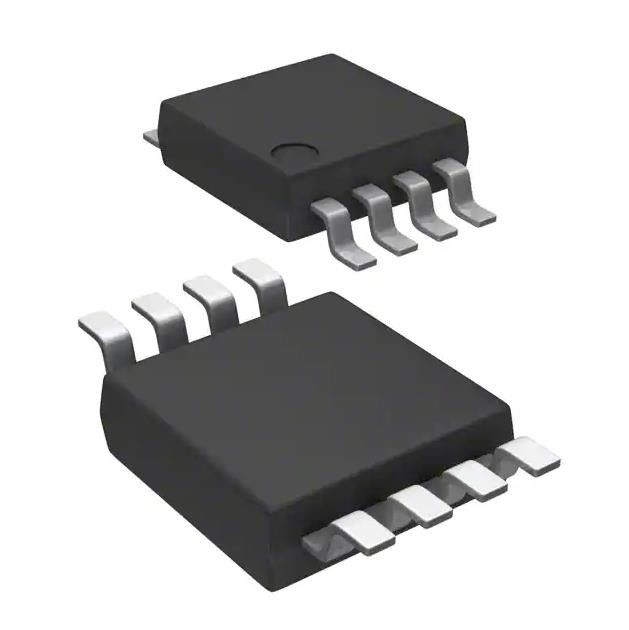

MAX942EUA + T Integrated Circuit Chip TTL 8-uMAX/uSOP 600µA -40°C ~ 85°C
Product Details:
Place of Origin: | Original |
Brand Name: | Original |
Certification: | Original |
Model Number: | MAX942EUA+T |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | carton box |
Delivery Time: | 1-3working days |
Payment Terms: | T/T |
Supply Ability: | 100,000 |
Detail Information |
|||
Part No: | MAX942EUA+T | Voltage - Supply, Single/Dual: | 2.7V ~ 5.5V |
---|---|---|---|
Voltage - Input Offset (Max): | 3mV @ 5.5V | Current - Input Bias (Max): | 0.15µA @ 5.5V |
Current - Output (Typ): | 600µA | CMRR, PSRR (Typ): | 81.94dB CMRR, 81.94dB PSRR |
Propagation Delay (Max): | 80ns | Supplier Device Package: | 8-uMAX/uSOP |
Product Description
MAX942EUA + T Integrated Circuit Chip TTL 8-uMAX/uSOP 600µA -40°C ~ 85°C
Comparator General Purpose CMOS, Push-Pull, TTL 8-uMAX/uSOP
The MAX941/MAX942/MAX944 are single/dual/quad highspeed comparators optimized for systems powered from a
3V or 5V supply. These devices combine high speed, low
power, and rail-to-rail inputs. Propagation delay is 80ns,
while supply current is only 350μA per comparator.
Features of MAX942EUA+T
● Available in μMAX Package
● Optimized for 3V and 5V Applications
(Operation Down to 2.7V)
● Fast, 80ns Propagation Delay (5mV Overdrive)
● Rail-to-Rail Input Voltage Range
● Low 350μA Supply Current per Comparator
● Low, 1mV Offset Voltage
● Internal Hysteresis for Clean Switching
● Outputs Swing 200mV of Power Rails
● CMOS/TTL-Compatible Outputs
● Output Latch (MAX941 Only)
● Shutdown Function (MAX941 Only)
Specifications of MAX942EUA+T
Mfr
|
Analog Devices Inc./Maxim Integrated
|
Series
|
-
|
Product
|
MAX942EUA+T
|
Type
|
General Purpose
|
Number of Elements
|
2
|
Output Type
|
CMOS, Push-Pull, TTL
|
Voltage - Supply, Single/Dual (±)
|
2.7V ~ 5.5V
|
Voltage - Input Offset (Max)
|
3mV @ 5.5V
|
Current - Input Bias (Max)
|
0.15µA @ 5.5V
|
Current - Output (Typ)
|
-
|
Current - Quiescent (Max)
|
600µA
|
CMRR, PSRR (Typ)
|
81.94dB CMRR, 81.94dB PSRR
|
Propagation Delay (Max)
|
80ns
|
Hysteresis
|
-
|
Operating Temperature
|
-40°C ~ 85°C
|
Package / Case
|
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
|
Mounting Type
|
Surface Mount
|
Supplier Device Package
|
8-uMAX/uSOP
|
Base Product Number
|
MAX942
|
range (−10 ̊
Environmental & Export Classificationwith avck-
ATTRIBUTE | DESCRIPTION |
---|---|
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
REACH Status | REACH Unaffected |
ECCN | EAR99 |
HTSUS | 8542.39.0001 |
APPLICATIONS of MAX942EUA+T
● 3V/5V Systems
● Battery-Powered Systems
● Threshold Detectors/Discriminators
● Line Receivers
● Zero-Crossing Detectors
● Sampling Circuits
