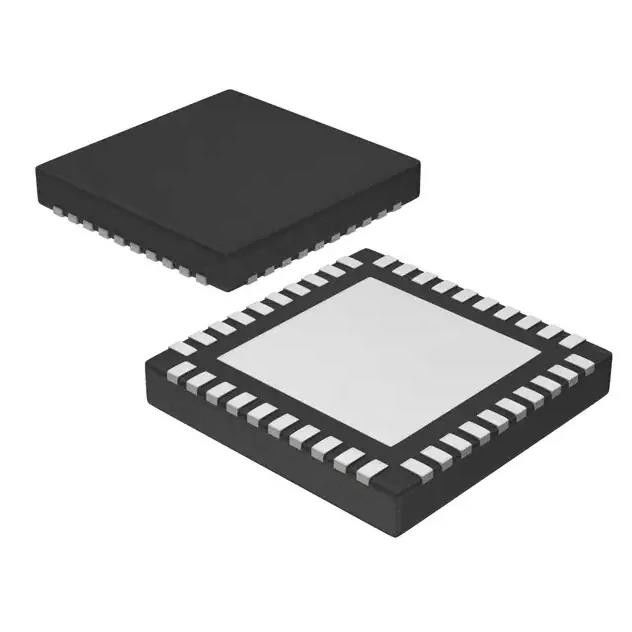

LMX2572RHAR Frequency Synthesizer IC 6.4GHz 1 40-VFQFN Exposed Pad



Buck Switching Regulator IC Positive Fixed 5V 1 Output 5.5A 22-VFQFN


The LMX2572 is a low-power, high-performance wideband synthesizer that can generate any frequency from 12.5 MHz to 6.4 GHz without using an internal doubler. The PLL delivers excellent performance while consuming just 75 mA from a single 3.3-V supply.
For applications like digital mobile radio (DMR) and wireless microphones, the LMX2572 supports FSK modulation. Discrete level FSK and pulse-shaping FSK are supported. Direct digital FSK modulation is achievable through programming or pins.



Features of LMX2572RHAR



• Output frequency: 12.5 MHz to 6.4 GHz
• Low power consumption: 75 mA at 3.3-V supply
• –106-dBc/Hz Phase noise at 100-kHz offset with
6.4-GHz carrier
• PLL figure of merit: –232 dBc/Hz
• PLL normalized 1/f noise: –123.5 dBc/Hz
• 32-Bit Fractional-N divider
• Remove integer boundary spurs with
programmable input multiplier
• Synchronization of output phase across multiple
devices
• Support for JESD204B SYSREF with
programmable delay
• Support for ramp and chirp functions
• Support for FSK direct digital modulation
• Two programmable output power level differential
outputs
• Fast VCO calibration speed: < 20 µs
• Single 3-V to 3.5-V power supply



Specifications of LMX2572RHAR



TYPE
DESCRIPTION
Category
Integrated Circuits (ICs)
Clock/Timing
Clock Generators, PLLs, Frequency Synthesizers
Mfr
Texas Instruments
Series
-
Product
LMX2572RHAR
Type
Frequency Synthesizer (RF)
PLL
Yes with Bypass
Input
Clock
Output
-
Number of Circuits
1
Ratio - Input:Output
1:2
Differential - Input:Output
Yes/Yes
Frequency - Max
6.4GHz
Divider/Multiplier
Yes/Yes
Voltage - Supply
3V ~ 3.5V
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
40-VFQFN Exposed Pad
Supplier Device Package
40-VQFN (6x6)
Base Product Number
LMX2572



range (−10 ̊

Environmental & Export Classifications


with avck-

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001



LMX2572RHAR Frequency Synthesizer IC 6.4GHz 1 40-VFQFN Exposed Pad 0



APPLICATIONS of LMX2572RHAR



Test and measurement equipment

• Digital 2-way radios

• Low power radio communication systems

• Satellite communication

• Wireless microphones

• Propriety wireless connectivity

• MIMO

• RADAR

• High-speed data converter clocking
