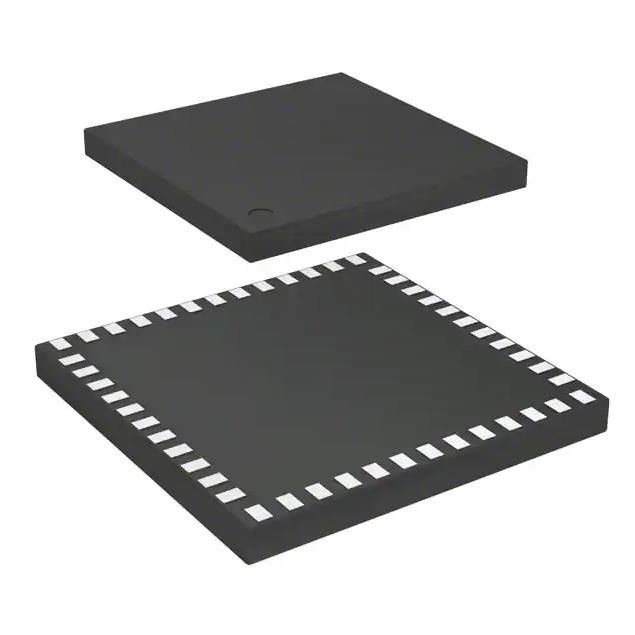

LMH0387SL / NOPB Integrated Circuit Chip Amplifier Interface 48-TLGA (7x7) SPI
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LMH0387SL/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | LMH0387SL/NOPB | Voltage - Supply: | 3.135V ~ 3.465V |
|---|---|---|---|
| Package / Case: | 48-VFQFN | Supplier Device Package: | 48-TLGA (7x7) |
| Mounting Type: | Surface Mount | ECCN: | EAR99 |
| Operating Temperature: | −40°C To 85°C | ||
Product Description
LMH0387SL / NOPB Integrated Circuit Chip Amplifier Interface 48-TLGA (7x7)
IC INTERFACE SPECIALIZED 48TLGA
The LMH0387 3 Gbps HD/SD SDI Configurable I/O Adaptive Cable Equalizer / Cable Driver provides a single chip interface to a BNC. The device can be configured either in the input mode as an equalizer to receive data over coaxial cable or in the output mode as a cable driver to transmit data over coaxial cable. The same I/O pin is used both for the input and the output functions of the device, allowing the system designer the flexibility to use a BNC attached to the device as either an input or an output.
Features of LMH0387SL/NOPB
* ST 424, ST 292, ST 344, and ST 259 Compliant.
* Supports DVB-ASl at 270 Mbps
* Data Rates:125 Mbps to 2.97 Gbps when
Receiving (DC to 2.97 Gbps when Driving Cable)
* Equalizes up to 120 Meters of Belden 1694A at
2.97 Gbps, up to 200 Meters of Belden 1694A at 1.485 Gbps, or up to 400 Meters of Belden 1694A at 270 Mbps
* Integrated Return Loss Network (No External Components Required)
* Power Saving Modes
* Cable Driver Selectable Slew Rate
* Internally Terminated 100-Ω LVDS Receiver Outputs With Programmable Common Mode Voltage and Swing
* Programmable Launch Amplitude Optimization for Receiver
* Cable Length Indication
* Single 3.3-V Supply Operation 48-Pin Laminate TLGA Package
* Industrial Temperature Range:-40°C to 85°C
Specifications of LMH0387SL/NOPB
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
|
Product Status
|
LMH0387SL/NOPB
|
| Package | Tape & Reel |
|
Applications
|
Amplifier
|
|
Interface
|
SPI Serial
|
|
Voltage - Supply
|
3.135V ~ 3.465V
|
|
Package / Case
|
48-VFQFN
|
|
Supplier Device Package
|
48-TLGA (7x7)
|
|
Mounting Type
|
Surface Mount
|
|
Base Product Number
|
LMH0387
|
range (−10 ̊
Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
APPLICATIONS of LMH0387SL/NOPB
·ST424(SMPTE424M),ST292(SMPTE292M),
and ST 259 (SMPTE 259M) Serial Digital Interfaces
· Digital Video Servers and Modular Equipment
· Video Encoders and Decoders
· Distribution Amplifiers
