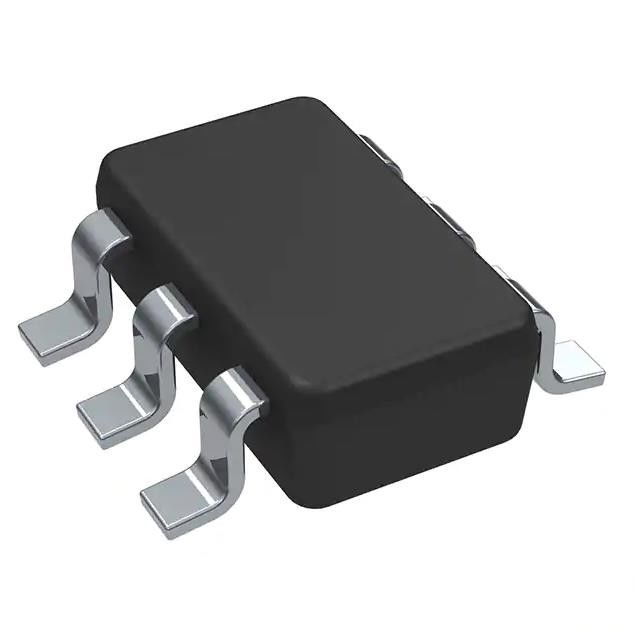

LM74700QDBVRQ1 Integrated Circuit Chip N+1 ORing Controller N-Channel SOT-23-6
Product Details:
Place of Origin: | Original |
Brand Name: | Original |
Certification: | Original |
Model Number: | LM74700QDBVRQ1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | carton box |
Delivery Time: | 1-3working days |
Payment Terms: | T/T |
Supply Ability: | 100,000 |
Detail Information |
|||
Part No: | LM74700QDBVRQ1 | Type: | N+1 ORing Controller |
---|---|---|---|
FET Type: | N-Channel | Ratio - Input:Output: | 1:1 |
Delay Time - ON: | 1.4 µs | Delay Time - OFF: | 450 Ns |
Current - Output (Max): | 5A | Voltage - Supply: | 3.2V ~ 65V |
Product Description
LM74700QDBVRQ1 Integrated Circuit Chip N+1 ORing Controller N-Channel SOT-23-6
Buck Switching Regulator IC Positive Adjustable 3.3V 1 Output 2.5A 22-VFQFN
Features of LM74700QDBVRQ1
AEC-Q100 qualified with the following results
– Device temperature grade 1:
–40°C to +125°C ambient operating
temperature range
– Device HBM ESD classification level 2
– Device CDM ESD classification level C4B
• Functional Safety-Capable
– Documentation available to aid functional safety
system design
• 3.2-V to 65-V input range (3.9-V start up)
• –65-V reverse voltage rating
• Charge pump for external N-Channel MOSFET
• 20-mV ANODE to CATHODE forward voltage drop
regulation
• Enable pin feature
• 1-µA shutdown current (EN=Low)
• 80-µA operating quiescent current (EN=High)
• 2.3-A peak gate turnoff current
• Fast response to reverse current blocking:
< 0.75 µs
• Meets automotive ISO7637 transient requirements
with a suitable TVS Diode
• Available in 6-pin and 8-pin SOT-23 Package 2.90
mm × 1.60 mm
Specifications of LM74700QDBVRQ1
Product
|
LM74700QDBVRQ1
|
Type
|
N+1 ORing Controller
|
FET Type
|
N-Channel
|
Ratio - Input:Output
|
1:1
|
Internal Switch(s)
|
No
|
Delay Time - ON
|
1.4 µs
|
Delay Time - OFF
|
450 ns
|
Current - Output (Max)
|
5A
|
Voltage - Supply
|
3.2V ~ 65V
|
Applications
|
Automotive
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
Mounting Type
|
Surface Mount
|
Package / Case
|
SOT-23-6
|
Supplier Device Package
|
SOT-23-6
|
Base Product Number
|
LM74700
|
range (−10 ̊
Environmental & Export Classifications
with avck-
ATTRIBUTE | DESCRIPTION |
---|---|
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 2 (1 Year) |
REACH Status | REACH Unaffected |
ECCN | EAR99 |
HTSUS | 8542.39.0001 |
APPLICATIONS of LM74700QDBVRQ1
• Automotive infotainment systems - digital cluster,
head unit
• Industrial factory automation - PLC
• Enterprise power supplies
• Active ORing for redundant power
