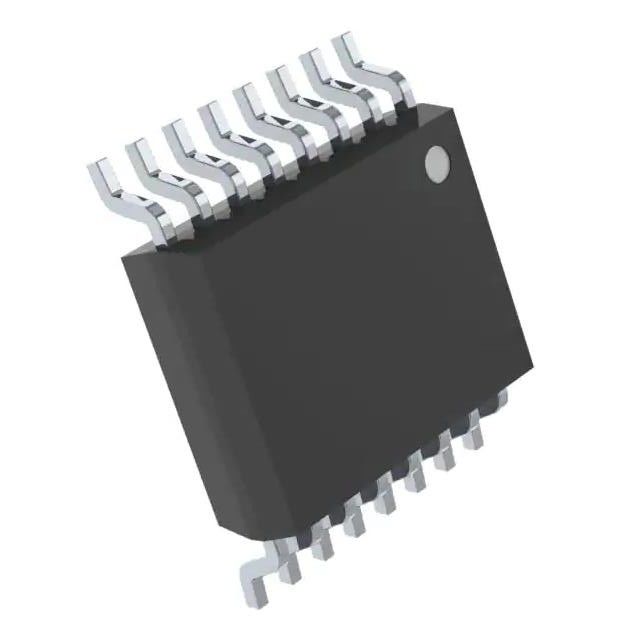

LM53602AQPWPRQ1 IC Chip 3.3V 1 Output 2A 16-Power TSSOP 36V 2.1MHz
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LM53602AQPWPRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | LM53602AQPWPRQ1 | Voltage - Input (Min): | 3.9V |
|---|---|---|---|
| Voltage - Input (Max): | 36V | Supplier Device Package: | 16-HTSSOP |
| Voltage - Output (Max): | 3.3V | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Current - Output: | 2A | Frequency - Switching: | 2.1MHz |
Product Description
LM53602AQPWPRQ1 Integrated Circuit Chip 3.3V 1 Output 2A 16-Power TSSOP 3.9V
Buck Switching Regulator IC Positive Adjustable 3.3V 1 Output 2A 16-PowerTSSOP (0.173", 4.40mm Width)
Features of LM53602AQPWPRQ1
• 3 A or 2 A maximum load current
• Input Voltage Range from 3.5 V to 36 V:
Transients to 42 V
• Output Voltage Options: 5 V, 3.3 V, ADJ
• 2.1 MHz Fixed Switching Frequency
• ±2% Output Voltage Tolerance
• –40°C to 150°C Junction Temperature Range
• 1.7 µA Shutdown Current (typical)
• 24 µA Input Supply Current at No Load (typical)
• No external Feed-back Divider Required for 5 V or
3.3 V output
• Reset Output With Filter and Delay
• Automatic Light Load Mode for Improved
Efficiency
• User-Selectable Forced PWM mode (FPWM)
• Built-in Loop Compensation, Soft-start, Current
Limit, Thermal Shutdown, UVLO, and External
Frequency Synchronization
• Thermally Enhanced 16-lead Package:
5 mm x 4.4 mm x 1 mm
Specifications of LM53602AQPWPRQ1
|
Product
|
LM53602AQPWPRQ1
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
3.9V
|
|
Voltage - Input (Max)
|
36V
|
|
Voltage - Output (Min/Fixed)
|
3.3V
|
|
Voltage - Output (Max)
|
6V
|
|
Current - Output
|
2A
|
|
Frequency - Switching
|
2.1MHz
|
|
Synchronous Rectifier
|
Yes
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-PowerTSSOP (0.173", 4.40mm Width)
|
|
Supplier Device Package
|
16-HTSSOP
|
|
Base Product Number
|
LM53602
|
