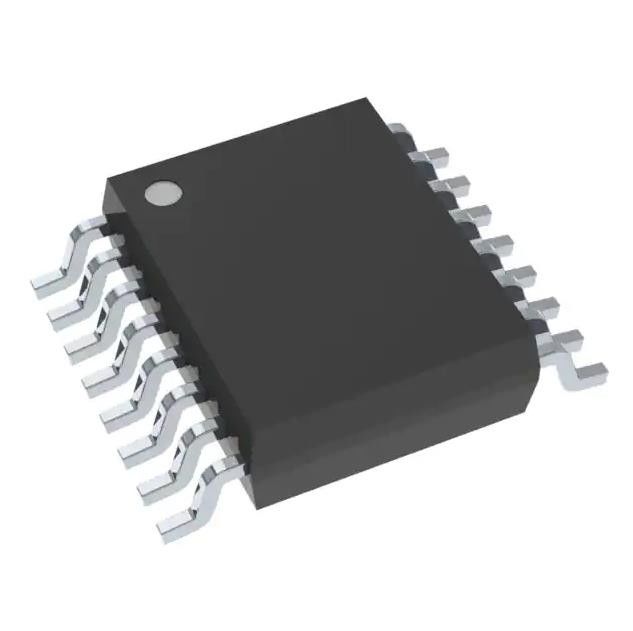

LM43600AQPWPRQ1 Integrated Circuit Chip 1V 1 Output 500mA 16-PowerTSSOP
Product Details:
Place of Origin: | Original |
Brand Name: | Original |
Certification: | Original |
Model Number: | LM43600AQPWPRQ1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | carton box |
Delivery Time: | 1-3working days |
Payment Terms: | T/T |
Supply Ability: | 100,000 |
Detail Information |
|||
Part No: | LM43600AQPWPRQ1 | Voltage - Input (Min): | 3.5V |
---|---|---|---|
Voltage - Input (Max): | 36V | Voltage - Output (Max): | 28V |
Supplier Device Package: | 28-WQFN (5x5) | Current - Output: | 500mA |
Product Description
LM43600AQPWPRQ1 Integrated Circuit Chip 1V 1 Output 500mA 16-PowerTSSOP
Buck Switching Regulator IC Positive Adjustable 1V 1 Output 500mA 16-PowerTSSOP (0.173", 4.40mm Width)
Features of LM43600AQPWPRQ1
Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40°C to
+125°C Ambient Operating Temperature
• 33-µA Quiescent Current in Regulation
• High Efficiency at Light Load (DCM and PFM)
• Tested to EN55022/CISPR 22 EMI standards
• Integrated Synchronous Rectification
• Adjustable Frequency Range: 200 kHz to 2.2 MHz
(500 kHz Default)
• Frequency Synchronization to External Clock
• Internal Compensation
• Stable with Almost Any Combination of Ceramic,
Polymer, Tantalum, and Aluminum Capacitors
• Power-Good Flag
• Soft Start into Pre-Biased Load
• Internal Soft Start: 4.1 ms
• Extendable Soft-Start Time by External Capacitor
• Output Voltage Tracking Capability
• Precision Enable to Program System UVLO
• Output Short-Circuit Protection with Hiccup Mode
• Overtemperature Thermal Shutdown Protection
• Programmable Line UVLO and OVP
Specifications of LM43600AQPWPRQ1
Product
|
LM43600AQPWPRQ1
|
Function
|
Step-Down
|
Output Configuration
|
Positive
|
Topology
|
Buck
|
Output Type
|
Adjustable
|
Number of Outputs
|
1
|
Voltage - Input (Min)
|
3.5V
|
Voltage - Input (Max)
|
36V
|
Voltage - Output (Min/Fixed)
|
1V
|
Voltage - Output (Max)
|
28V
|
Current - Output
|
500mA
|
Frequency - Switching
|
200kHz ~ 2.2MHz
|
Synchronous Rectifier
|
Yes
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
Mounting Type
|
Surface Mount
|
Package / Case
|
16-PowerTSSOP (0.173", 4.40mm Width)
|
Supplier Device Package
|
16-HTSSOP
|
Base Product Number
|
LM43600
|
range (−10 ̊
Environmental & Export Classifications
with avck-
ATTRIBUTE | DESCRIPTION |
---|---|
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
REACH Status | REACH Unaffected |
ECCN | EAR99 |
HTSUS | 8542.39.0001 |
APPLICATIONS of LM43600AQPWPRQ1
Sub-AM Band Automotive
• Telecommunications Systems
• General Purpose Wide VIN Regulation
• High Efficiency Point-Of-Load Regulation
