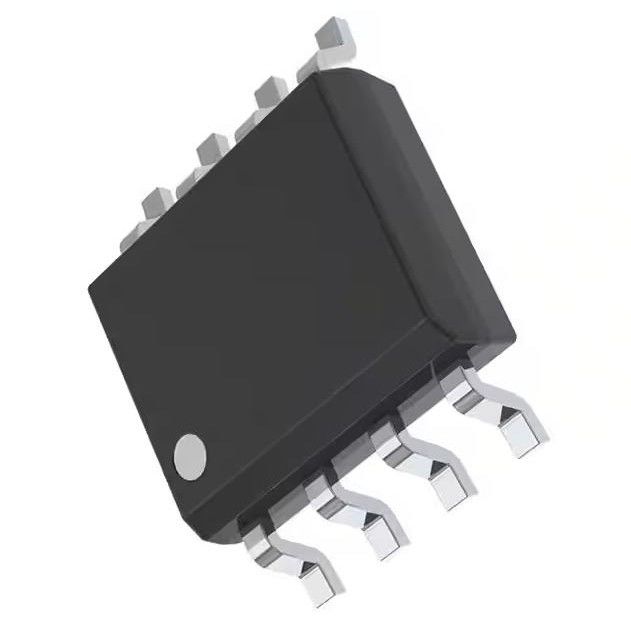

• LM7322QMAX / NOPB Integrated Circuit Chip 2 Circuit Rail-to-Rail 8-SOIC
LM7322QMAX / NOPB Integrated Circuit Chip 2 Circuit Rail-to-Rail 8-SOIC

LM7322QMAX / NOPB Integrated Circuit Chip 2 Circuit Rail-to-Rail 8-SOIC

Product Details:

Place of Origin: Original
Brand Name: Original
Certification: Original
Model Number: LM7322QMAX/NOPB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 1-3working days
Payment Terms: T/T
Supply Ability: 100,000
Get Best Price Contact Now

Detail Information

Part No: LM7322QMAX/NOPB Slew Rate: 18V/µs
Gain Bandwidth Product: 20 MHz Current - Input Bias: 1.1 µA
Voltage - Input Offset: 700 µV Current - Supply: 2.5mA (x2 Channels)
Current - Output / Channel: 100 MA Voltage - Supply Span (Min): 2.5 V

Product Description

LM7322QMAX / NOPB Integrated Circuit Chip 2 Circuit Rail-to-Rail 8-SOIC



General Purpose Amplifier 2 Circuit Rail-to-Rail 8-SOIC



Features of LM7322QMAX/NOPB



· (Vs=±15,TA=25℃,Typical Values Unless

Specified.)

Wide Supply Voltage Range 2.5 V to 32 V Output Current +65 mA/-100 mA Gain Bandwidth Product 20 MHz Slew Rate 18 V/us

Capacitive Load Tolerance Unlimited

Input Common-Mode Voltage 0.3-V Beyond Rails Input Voltage Noise 15 nV/√Hz Input Current Noise 1.3 pA/Hz Supply Current/Channel 1.1 mA Distortion THD+Noise-86 dB Temperature Range-40°C to 125°C

Tested at-40°C,25°C and 125°C at 2.7V,±5V ±15V.

· LM732xx are Automotive Grade Products that are

AEC-Q100 Grade 1 Qualified.



Specifications of LM7322QMAX/NOPB



Product
LM7322QMAX/NOPB
Amplifier Type
General Purpose
Number of Circuits
2
Output Type
Rail-to-Rail
Slew Rate
18V/µs
Gain Bandwidth Product
20 MHz
Current - Input Bias
1.1 µA
Voltage - Input Offset
700 µV
Current - Supply
2.5mA (x2 Channels)
Current - Output / Channel
100 mA
Voltage - Supply Span (Min)
2.5 V
Voltage - Supply Span (Max)
32 V
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC
Base Product Number
LM7322



range (−10 ̊

Environmental & Export Classifications


with avck-

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001



APPLICATIONS of LM7322QMAX/NOPB



· Driving MOSFETs and Power Transistors

· Capacitive Proximity Sensors

· Driving Analog Optocouplers

· High-Side Sensing

· Below Ground Current Sensing

· Photodiode Biasing

· Driving Varactor Diodes in PLLs

· Wide Voltage Range Power supplies

· Automotive

· International Power Supplies





LM7322QMAX / NOPB Integrated Circuit Chip 2 Circuit Rail-to-Rail 8-SOIC 0
