LM2591HVSX-ADJ / NOPB Integrated Circuit Chip IC 1.2V 1 Output 1A TO-263-6
Product Details:
Place of Origin: | Original |
Brand Name: | Original |
Certification: | Original |
Model Number: | LM2591HVSX-ADJ/NOPB |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | carton box |
Delivery Time: | 1-3working days |
Payment Terms: | T/T |
Supply Ability: | 100,000 |
Detail Information |
|||
Part No: | LM2591HVSX-ADJ/NOPB | Number Of Outputs: | 1 |
---|---|---|---|
Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 60V |
Voltage - Output (Min/Fixed): | 1.2V | Voltage - Output (Max): | 57V |
Product Description

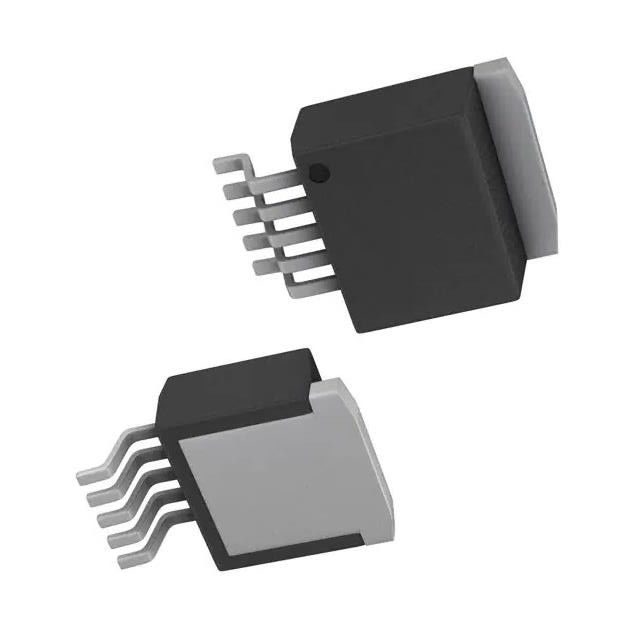

LM2591HVSX-ADJ / NOPB Integrated Circuit Chip IC 1.2V 1 Output 1A TO-263-6
Buck Switching Regulator IC Positive Adjustable 1.2V 1 Output 1A TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Features of LM2591HVSX-ADJ/NOPB
• 3.3-V, 5-V, and Adjustable Output Versions
• Specified 1-A Output Load Current
• Available in 5-Pin Package
• Input Voltage Range Up to 60 V
• 150-kHz Fixed Frequency Internal Oscillator
• ON and OFF Control
• Low Power Standby Mode, IQ Typically 90 μA
• High Efficiency
DESCRIPTION of LM2591HVSX-ADJ/NOPB
The LM2591HV series of regulators are monolithic
integrated circuits that provide all the active functions
for a step-down (buck) switching regulator, capable of
driving a 1-A load with excellent line and load
regulation. These devices are available in fixed output
voltages of 3.3 V, 5 V, and an adjustable output
version.
This series of switching regulators is similar to the
LM2590HV, but without some of the supervisory and
control features of the latte.
Specifications of LM2591HVSX-ADJ/NOPB
Product
|
LM2591HVS-ADJ / NOPB
|
Function
|
Step-Down
|
Output Configuration
|
Positive
|
Topology
|
Buck
|
Output Type
|
Adjustable
|
Number of Outputs
|
1
|
Voltage - Input (Min)
|
4.5V
|
Voltage - Input (Max)
|
60V
|
Voltage - Output (Min/Fixed)
|
1.2V
|
Voltage - Output (Max)
|
57V
|
Current - Output
|
1A
|
Frequency - Switching
|
150kHz
|
Synchronous Rectifier
|
No
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
Mounting Type
|
Surface Mount
|
Package / Case
|
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
|
Supplier Device Package
|
DDPAK/TO-263-5
|
Base Product Number
|
LM2591
|
range (−10 ̊
Environmental & Export Classifications
with improved accuracy). The LM35 series is available pack-
ATTRIBUTE | DESCRIPTION |
---|---|
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
REACH Status | REACH Unaffected |
ECCN | EAR99 |
HTSUS | 8542.39.0001 |
APPLICATIONS of LM2591HVSX-ADJ/NOPB
• Efficient Preregulator for Linear Regulators
• On-Card Switching Regulators
