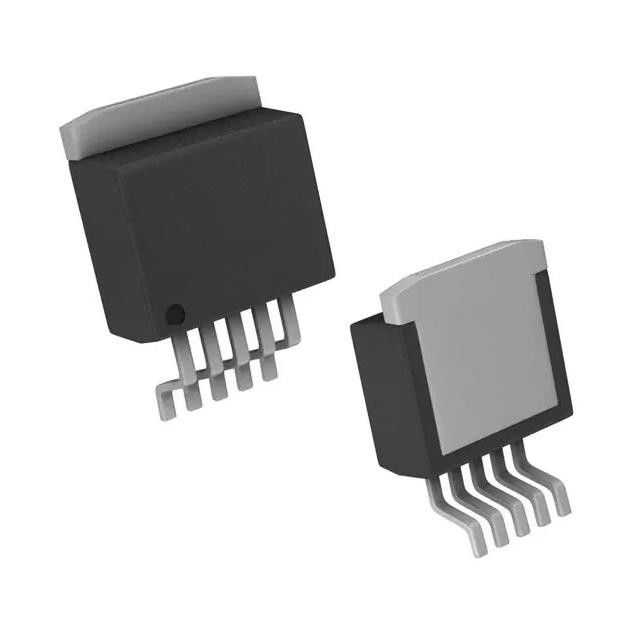

• LM2591HVS-ADJ / NOPB Integrated Circuit Chip 1.2V 1 Output 1A TO-263-6
LM2591HVS-ADJ / NOPB Integrated Circuit Chip 1.2V 1 Output 1A TO-263-6

LM2591HVS-ADJ / NOPB Integrated Circuit Chip 1.2V 1 Output 1A TO-263-6

Product Details:

Place of Origin: Original
Brand Name: Original
Certification: Original
Model Number: LM2591HVS-ADJ / NOPB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 1-3working days
Payment Terms: T/T
Supply Ability: 100,000
Get Best Price Contact Now

Detail Information

Part No: LM2591HVS-ADJ / NOPB Voltage - Output (Min/Fixed): 1.2V
Voltage - Output (Max): 57V Current - Output: 1A
Frequency - Switching: 150kHz Operating Temperature: -40°C ~ 125°C (TJ)

Product Description

LM2591HVS-ADJ / NOPB Integrated Circuit Chip 1.2V 1 Output 1A TO-263-6​



Buck Switching Regulator IC Positive Adjustable 1.2V 1 Output 1A TO-263-6, D²Pak (5 Leads + Tab), TO-263BA



Features of LM2591HVS-ADJ / NOPB



• 3.3-V, 5-V, and Adjustable Output Versions
• Adjustable Version Output Voltage Range: 1.2 V
to 57 V ±4% Maximum Over Line and Load
Conditions
• Specified 1-A Output Load Current
• Available in 5-Pin Package
• Input Voltage Range Up to 60 V
• 150-kHz Fixed Frequency Internal Oscillator
• ON and OFF Control
• Low Power Standby Mode, IQ Typically 90 μA
• High Efficiency
• Thermal Shutdown and Current-Limit Protection



DESCRIPTION of LM2591HVS-ADJ / NOPB



The LM3xxLV family includes the single LM321LV,
dual LM358LV, and quad LM324LV operational
amplifiers, or op amps. The devices operate from a
low voltage of 2.7 V to 5.5 V.



Specifications of LM2591HVS-ADJ / NOPB



Product
LM2591HVS-ADJ / NOPB
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
4.5V
Voltage - Input (Max)
60V
Voltage - Output (Min/Fixed)
1.2V
Voltage - Output (Max)
57V
Current - Output
1A
Frequency - Switching
150kHz
Synchronous Rectifier
No
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package
DDPAK/TO-263-5
Base Product Number
LM2591



range (−10 ̊

Environmental & Export Classifications


with improved accuracy). The LM35 series is available pack-

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001



APPLICATIONS of LM2591HVS-ADJ / NOPB



Simple High-Efficiency Step-Down (Buck)
Regulators
• Efficient Preregulator for Linear Regulators
• On-Card Switching Regulators
• Positive-to-Negative Converters
