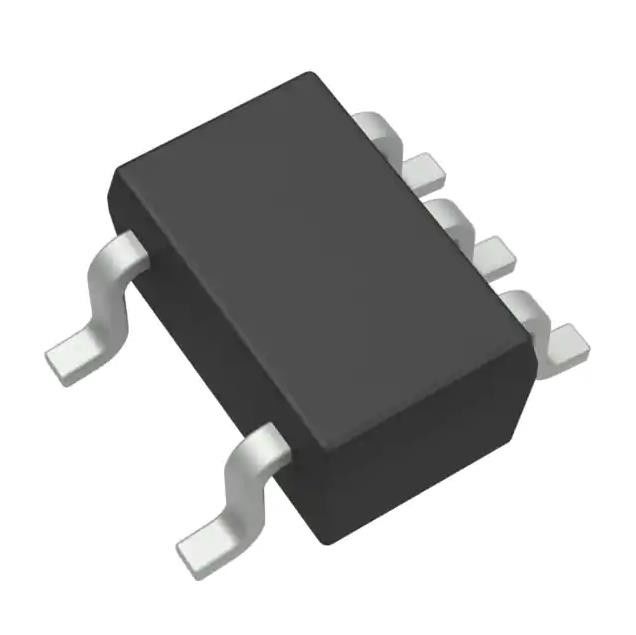

LM321LVIDCKR IC General Purpose Amplifier 1 Circuit SC-70-5 1.5V/µs
Product Details:
Place of Origin: | Original |
Brand Name: | Original |
Certification: | Original |
Model Number: | LM321LVIDCKR |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | carton box |
Delivery Time: | 1-3working days |
Payment Terms: | T/T |
Supply Ability: | 100,000 |
Detail Information |
|||
Part No: | LM321LVIDCKR | Slew Rate: | 1.5V/µs |
---|---|---|---|
Gain Bandwidth Product: | 1 MHz | Current - Input Bias: | 15 PA |
Current - Supply: | 90µA | Voltage - Supply Span (Min): | 2.7 V |
Product Description
LM321LVIDCKR IC General Purpose Amplifier 1 Circuit SC-70-5 1.5V/µs
CAN Digital Isolator 3000Vrms 6 Channel 100Mbps 85kV/µs CMTI 16-SSOP (0.154", 3.90mm Width)
Features of LM321LVIDCKR
• Industry standard amplifier for cost-sensitive
systems
• Low input offset voltage: ±1 mV
• Common-mode voltage range includes ground
• Unity-gain bandwidth: 1 MHz
• Low broadband noise: 40 nV/√Hz
• Low quiescent current: 90 µA/Ch
• Unity-gain stable
• Operational at supply voltages from 2.7 V to 5.5 V
• Offered in single, dual, and quad channel variants
• Robust ESD specification: 2-kV HBM
• Extended temperature range: –40°C to 125°C
DESCRIPTION of LM321LVIDCKR
The LM3xxLV family includes the single LM321LV,
dual LM358LV, and quad LM324LV operational
amplifiers, or op amps. The devices operate from a
low voltage of 2.7 V to 5.5 V.
Specifications of LM321LVIDCKR
Product
|
LM321LVIDCKR
|
Amplifier Type
|
General Purpose
|
Number of Circuits
|
1
|
Output Type
|
-
|
Slew Rate
|
1.5V/µs
|
Gain Bandwidth Product
|
1 MHz
|
Current - Input Bias
|
15 pA
|
Current - Supply
|
90µA
|
Current - Output / Channel
|
40 mA
|
Voltage - Supply Span (Min)
|
2.7 V
|
Voltage - Supply Span (Max)
|
5.5 V
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
Mounting Type
|
Surface Mount
|
Package / Case
|
5-TSSOP, SC-70-5, SOT-353
|
Supplier Device Package
|
SC-70-5
|
Base Product Number
|
LM321
|
range (−10 ̊
Environmental & Export Classifications
with improved accuracy). The LM35 series is available pack-
ATTRIBUTE | DESCRIPTION |
---|---|
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 2 (1 Year) |
REACH Status | REACH Unaffected |
ECCN | EAR99 |
HTSUS | 8542.33.0001 |
APPLICATIONS of LM321LVIDCKR
• Cordless appliances
• Uninterruptible power supply
• Battery pack, charger, and test equipment
• Power supply modules
• Environmental sensors signal conditioning
• Field transmitter: temperature sensors
• Oscilloscopes, digital multimeters, test equipment
• Rack mount server
• HVAC: heating, ventilating, and air conditioning
• DC motor control
• Low-side current sensing
