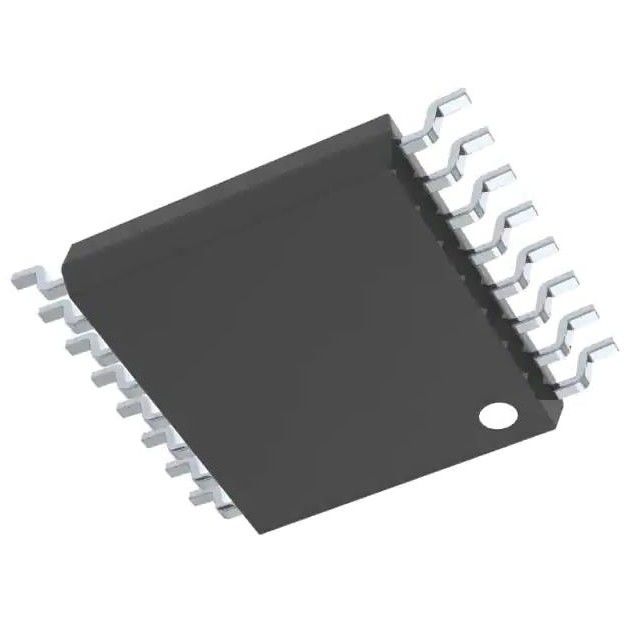

DAC7568ICPWR 12 Bit Digital to Analog Converter 8 16-TSSOP 10µs 2.7V ~ 5.5V
Product Details:
Place of Origin: | Original |
Brand Name: | Original |
Certification: | Original |
Model Number: | DAC7568ICPWR |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | carton box |
Delivery Time: | 1-3working days |
Payment Terms: | T/T |
Supply Ability: | 100,000 |
Detail Information |
|||
Part No: | DAC7568ICPWR | Settling Time: | 10µs |
---|---|---|---|
Voltage - Supply, Analog @ Vr, F: | 2.7V ~ 5.5V | INL/DNL (LSB): | ±0.3, ±0.05 |
Operating Temperature: | -40°C ~ 125°C | Supplier Device Package: | 16-TSSOP |
Product Description
DAC7568ICPWR 12 Bit Digital to Analog Converter 8 16-TSSOP 10µs 2.7V ~ 5.5V
Operating Temperature: -50qC to +150qC
Storage Temperature: -50qC to +150qC
Maximum Thermal Resistance; 15qC/W Junction To Lead
Features of DAC7568ICPWR
• Glitch Energy: 0.1nV-s
• Power-On Reset to Zero Scale or Midscale
• Ultralow Power Operation: 1.25mA at 5V Including
Internal Reference Current
• Wide Power-Supply Range: +2.7V to +5.5V
• Monotonic Over Entire Temperature Range
• Low-Power Serial Interface with Schmitt-Triggered
Inputs: Up to 50MHz
• On-Chip Output Buffer Amplifier with Rail-to-Rail
Operation
• Temperature Range: –40°C to +125°C
Product Attributes of DAC7568ICPWR
Product Status
|
DAC7568ICPWR
|
Package
|
Tape & Reel
|
Number of Bits
|
12
|
Number of D/A Converters
|
8
|
Settling Time
|
10µs
|
Output Type
|
Voltage - Buffered
|
Differential Output
|
No
|
Data Interface
|
SPI, DSP
|
Reference Type
|
External, Internal
|
Voltage - Supply, Analog
|
2.7V ~ 5.5V
|
Voltage - Supply, Digital
|
2.7V ~ 5.5V
|
INL/DNL (LSB)
|
±0.3, ±0.05
|
Architecture
|
String DAC
|
Operating Temperature
|
-40°C ~ 125°C
|
Package / Case
|
16-TSSOP (0.173", 4.40mm Width)
|
Supplier Device Package
|
16-TSSOP
|
Mounting Type
|
Surface Mount
|
Base Product Number
|
DAC7568
|
range (−10 ̊
Environmental & Export Classifications
with improved accuracy). The LM35 series is available pack-
ATTRIBUTE | DESCRIPTION |
---|---|
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 2 (1 Year) |
REACH Status | REACH Unaffected |
ECCN | EAR99 |
HTSUS | 8542.39.0001 |
Applications of DAC7568ICPWR
• Portable Instrumentation
• Closed-Loop Servo-Control/Process Control
• Data Acquisition Systems
• Programmable Voltage and Current Sources
