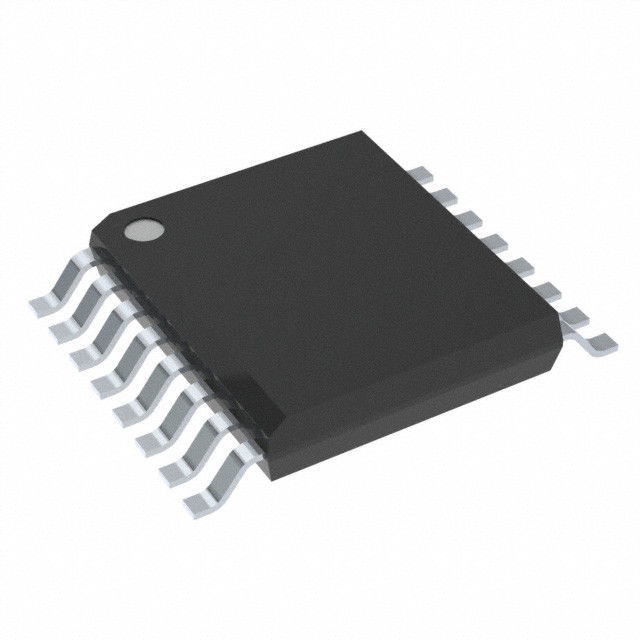

DAC7568ICPW IC Chip 12 Bit Digital Converter 8 16-TSSOP Digital to Analog
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | DAC7568ICPW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | DAC7568ICPW | Number Of Bits: | 12 |
|---|---|---|---|
| Number Of D/A Converters: | 8 | Settling Time: | 10µs |
| Voltage - Supply, Analog @ Vr, F: | 2.7V ~ 5.5V | INL/DNL (LSB): | ±0.3, ±0.05 |
Product Description
DAC7568ICPW Integrated Circuit Chip 12 Bit Digital Converter 8 16-TSSOP
Operating Temperature: -50qC to +150qC
Storage Temperature: -50qC to +150qC
Maximum Thermal Resistance; 15qC/W Junction To Lead
Features of DAC7568ICPW
Relative Accuracy:
– DAC7568 (12-Bit): 0.3 LSB INL
– DAC8168 (14-Bit): 1 LSB INL
– DAC8568 (16-Bit): 4 LSB INL
• Glitch Energy: 0.1nV-s
• Internal Reference:
– 2.5V Reference Voltage (disabled by default)
– 0.004% Initial Accuracy (typ)
– 2ppm/°C Temperature Drift (typ)
– 5ppm/°C Temperature Drift (max)
– 20mA Sink/Source Capability
• Power-On Reset to Zero Scale or Midscale
• Ultralow Power Operation: 1.25mA at 5V Including
Internal Reference Current
• Wide Power-Supply Range: +2.7V to +5.5V
• Monotonic Over Entire Temperature Range
• Low-Power Serial Interface with Schmitt-Triggered
Inputs: Up to 50MHz
• On-Chip Output Buffer Amplifier with Rail-to-Rail
Operation
• Temperature Range: –40°C to +125°C
Product Attributes of DAC7568ICPW
|
Product Status
|
DAC7568ICPW
|
|
Digi-Key Programmable
|
Not Verified
|
|
Number of Bits
|
12
|
|
Number of D/A Converters
|
8
|
|
Settling Time
|
10µs
|
|
Output Type
|
Voltage - Buffered
|
|
Differential Output
|
No
|
|
Data Interface
|
SPI, DSP
|
|
Reference Type
|
External, Internal
|
|
Voltage - Supply, Analog
|
2.7V ~ 5.5V
|
|
Voltage - Supply, Digital
|
2.7V ~ 5.5V
|
|
INL/DNL (LSB)
|
±0.3, ±0.05
|
|
Architecture
|
String DAC
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Package / Case
|
16-TSSOP (0.173", 4.40mm Width)
|
|
Supplier Device Package
|
16-TSSOP
|
|
Mounting Type
|
Surface Mount
|
|
Base Product Number
|
DAC7568
|
range (−10 ̊
Environmental & Export Classifications
with improved accuracy). The LM35 series is available pack-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Applications of DAC7568ICPW
• Portable Instrumentation
• Closed-Loop Servo-Control/Process Control
• Data Acquisition Systems
• Programmable Attenuation, Digital Gain, and
Offset Adjustment
• Programmable Voltage and Current Sources
