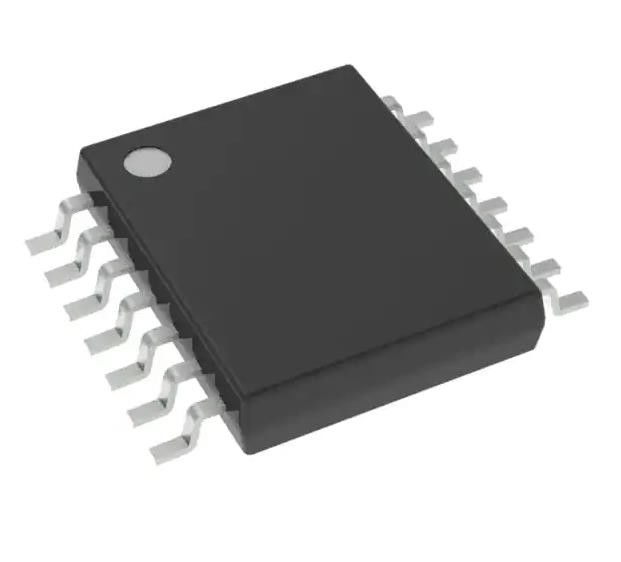

• TLV4316QPWRQ1 Integrated Circuit Chip 4 Circuit Rail-to-Rail 14-TSSOP
TLV4316QPWRQ1 Integrated Circuit Chip 4 Circuit Rail-to-Rail 14-TSSOP

TLV4316QPWRQ1 Integrated Circuit Chip 4 Circuit Rail-to-Rail 14-TSSOP

Product Details:

Place of Origin: Original
Brand Name: Original
Certification: Original
Model Number: TLV4316QPWRQ1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 1-3working days
Payment Terms: T/T
Supply Ability: 100,000
Get Best Price Contact Now

Detail Information

Number Of Circuits: 4 Output Type: Rail-to-Rail
Slew Rate: 6V/µs Gain Bandwidth Product: 10 MHz
Current - Input Bias: 10 PA SCurrent - Supply: 400µA (x4 Channels)

Product Description

TLV4316QPWRQ1 Integrated Circuit Chip 4 Circuit Rail-to-Rail 14-TSSOP



Features of TLV4316QPWRQ1



Qualified for Automotive Applications
• AEC-Q100 With the Following Results:
– Device Temperature Grade 1: –40°C to
+125°C Ambient Operating Temperature
Range
– Device HBM ESD Classification Level 3A
– Device CDM ESD Classification Level C5
• Unity-Gain Bandwidth: 10 MHz
• Low IQ: 400 µA/ch
– Excellent Power-to-Bandwidth Ratio
– Stable IQ Over Temperature and Supply
Range
• Wide Supply Range: 1.8 V to 5.5 V
• Low Noise: 12 nV/√Hz at 1 kHz
• Low Input Bias Current: ±10 pA
• Offset Voltage: ±0.75 mV
• Unity-Gain Stable
• Internal RFI and EMI Filter
• Number of Channels:
– TLV316-Q1: 1
– TLV2316-Q1: 2
– TLV4316-Q1: 4
• Extended Temperature Range: –40°C to +125°C



Product Attributes of TLV4316QPWRQ1



Product Status
Active
Amplifier Type
Number of Circuits
4
Output Type
Rail-to-Rail
Slew Rate
6V/µs
Gain Bandwidth Product
10 MHz
Current - Input Bias
10 pA
Voltage - Input Offset
750 µV
Current - Supply
400µA (x4 Channels)
Current - Output / Channel
50 mA
Voltage - Supply Span (Min)
1.8 V
Voltage - Supply Span (Max)
5.5 V
Operating Temperature
-40°C ~ 125°C
Mounting Type
Package / Case
Supplier Device Package
14-TSSOP
Base Product Number



Environmental & Export Classifications of TLV4316QPWRQ1



ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001


Applications of TLV4316QPWRQ1



Automotive Applications:
– ADAS
– Body Electronics and Lighting
– Current Sensing
– Battery Management Systems
