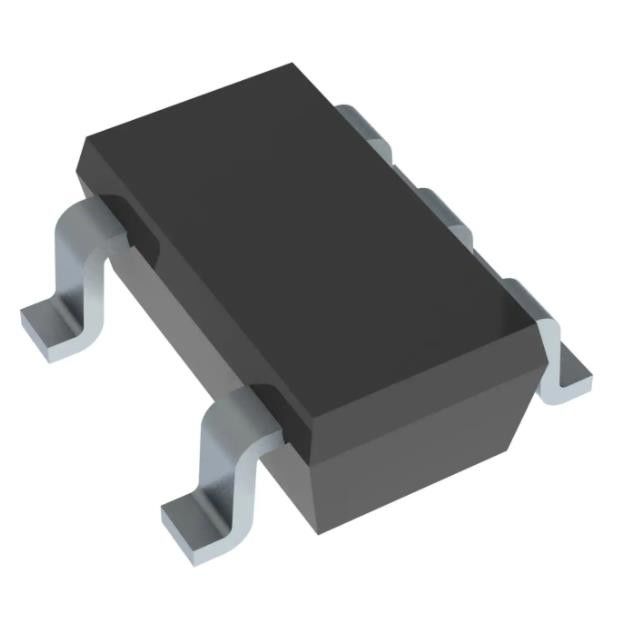

TLV2471QDBVRQ1 Circuit Rail-to-Rail SOT-23-5 SC-74A, SOT-753
Product Details:
Place of Origin: | Original |
Brand Name: | Original |
Certification: | Original |
Model Number: | TLV2471QDBVRQ1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | carton box |
Delivery Time: | 1-3working days |
Payment Terms: | T/T |
Supply Ability: | 100,000 |
Detail Information |
|||
Slew Rate: | 1.5V/µs | Current - Input Bias: | 2.5 PA |
---|---|---|---|
Voltage - Input Offset: | 250 µV | Current - Supply: | 600µA |
Current - Output / Channel: | 35 MA | Voltage - Supply Span (Min): | 2.7 V |
Operating Temperature: | -40°C ~ 125°C |
Product Description
TLV2471QDBVRQ1 Circuit Rail-to-Rail SOT-23-5 SC-74A, SOT-753
Features
FET input: IB = 50 pA Maximum FET input: IB = 50 pA Maximum Qualified for Automotive Applications
ESD Protection Exceeds 2000 V Per
MIL-STD-883, Method 3015; Exceeds 200 V
Using Machine Model (C = 200 pF, R = 0)
CMOS Rail-To-Rail Input/Output
Input Bias Current... 2.5 pA
Low Supply Current . . . 600 µA/Channel
Gain-Bandwidth Product . . . 2.8 MHz
High Output Drive Capability
− ±10 mA at 180 mV
− ±35 mA at 500 mV
Input Offset Voltage . . . 250 µV (typ)
Supply Voltage Range . . . 2.7 V to 6 V
TYPE
|
DESCRIPTION
|
---|---|
Category
|
Integrated Circuits (ICs)
Linear
Amplifiers
Instrumentation, OP Amps, Buffer Amps
|
Mfr
|
TI
|
Series
|
Automotive, AEC-Q100
|
Amplifier Type
|
General Purpose
|
Number of Circuits
|
1
|
Output Type
|
Rail-to-Rail
|
Slew Rate
|
1.5V/µs
|
Gain Bandwidth Product
|
2.8 MHz
|
Current - Input Bias
|
2.5 pA
|
Voltage - Input Offset
|
250 µV
|
Current - Supply
|
600µA
|
Current - Output / Channel
|
35 mA
|
Voltage - Supply Span (Min)
|
2.7 V
|
Voltage - Supply Span (Max)
|
6 V
|
Operating Temperature
|
-40°C ~ 125°C
|
Mounting Type
|
Surface Mount
|
Package / Case
|
SC-74A, SOT-753
|
Supplier Device Package
|
SOT-23-5
|
Base Product Number
|
TLV2471
|
Description
The TLV247x is a family of CMOS rail-to-rail input/output operational amplifiers that establishes a new performance point for supply current versus ac performance. These devices consume just 600 µA/channel while offering 2.8 MHz of gain-bandwidth product. Along with increased ac performance, the amplifier provides high output drive capability, solving a major shortcoming of older micropower operational amplifiers. The TLV247x can swing to within 180 mV of each supply rail while driving a 10-mA load. For non-RRO applications, the TLV247x can supply ±35 mA at 500 mV off the rail. Both the inputs and outputs swing rail-to-rail for increased dynamic range in low-voltage applications. This performance makes the TLV247x family ideal for sensor interface, portable medical equipment, and other data acquisition circuits. The family is fully specified at 3 V and 5 V across the automotive temperature range (−40°C to 125°C).
ATTRIBUTE | DESCRIPTION |
---|---|
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
REACH Status | REACH Unaffected |
ECCN | EAR99 |
HTSUS | 8542.33.0001 |
