TLV2376IDGKR CMOS Amplifier 2 Circuit Differential, Rail-to-Rail 8-VSSOP
Product Details:
Place of Origin: | Original |
Brand Name: | Original |
Certification: | Original |
Model Number: | TLV2376IDGKR |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | carton box |
Delivery Time: | 1-3working days |
Payment Terms: | T/T |
Supply Ability: | 100,000 |
Detail Information |
|||
Gain Bandwidth Product: | 50 MV | Current - Input Bias: | 0.3 PA |
---|---|---|---|
Voltage - Input Offset: | 40 µV | Current - Supply: | 815µA (x2 Channels) |
Current - Output / Channel: | 30 MA | Voltage - Supply Span (Min): | 2.2 V |
Product Description

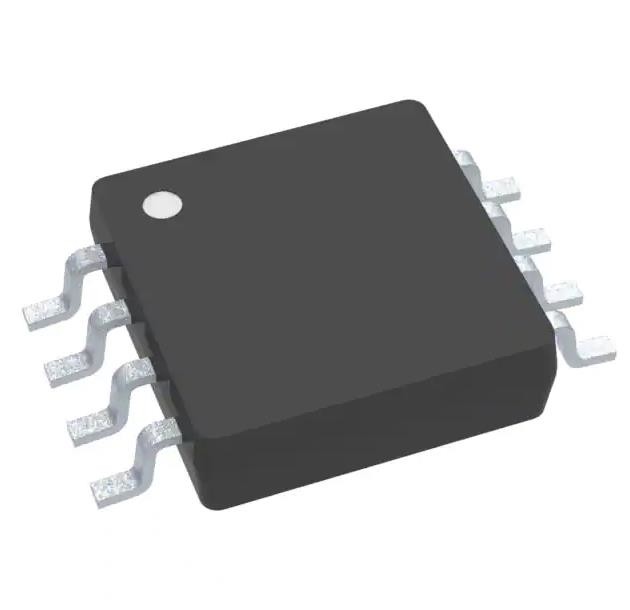

TLV2376IDGKR CMOS Amplifier 2 Circuit Differential, Rail-to-Rail 8-VSSOP
Features of TLV2376IDGKR
• Low Noise: 8 nV/√Hz at 1 kHz
• 0.1-Hz to 10-Hz Noise: 1.6 μVPP
• Quiescent Current: 815 μA (typical)
• Low Offset Voltage (typical):
– Single and Dual Versions: 40 μV
– Quad Version: 50 μV
• Gain Bandwidth Product: 5.5 MHz
• Rail-to-Rail Input and Output
• Single-Supply Operation
• Supply Voltage: 2.2 V to 5.5 V
• Industry-Standard Packages:
– SOT-23, SOIC, VSSOP, TSSOP
Product Status
|
Active
|
Amplifier Type
|
CMOS
|
Number of Circuits
|
2
|
Output Type
|
Differential, Rail-to-Rail
|
Slew Rate
|
2V/µs
|
Gain Bandwidth Product
|
5.5 MHz
|
Current - Input Bias
|
0.3 pA
|
Voltage - Input Offset
|
40 µV
|
Current - Supply
|
815µA (x2 Channels)
|
Current - Output / Channel
|
30 mA
|
Voltage - Supply Span (Min)
|
2.2 V
|
Voltage - Supply Span (Max)
|
5.5 V
|
Operating Temperature
|
-40°C ~ 125°C
|
Mounting Type
|
Surface Mount
|
Package / Case
|
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
|
Supplier Device Package
|
8-VSSOP
|
Base Product Number
|
TLV2376
|
Environmental & Export Classifications
ATTRIBUTE | DESCRIPTION |
---|---|
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 2 (1 Year) |
REACH Status | REACH Unaffected |
ECCN | EAR99 |
HTSUS | 8542.33.0001 |
Applications of TLV2376IDGKR
• Medical Instrumentation
• ADC Buffers
• Handheld Test Equipment
• Active Filtering
• Sensor Conditioning
Description of TLV2376IDGKR
The TLVx376 family represents a new generation of low-noise operational amplifiers with e-trim™, offering both excellent dc precision and ac performance. Railto-rail input and output, low offset (125 μV, maximum), low noise (8 nV/√Hz), a quiescent current of 1.2 mA (maximum), and a 5.5-MHz bandwidth with a fast slew rate of 2 V/μs make this family of devices very attractive for a variety of precision and portable applications. In addition, these devices have a reasonably wide supply range with excellent PSRR, making the family ideal for applications that run directly from batteries without regulation. The TLV376 (single version) is available in SOT-23-5 and SOIC-8 packages. The TLV2376 (dual) is offered in VSSOP-8 and SOIC-8 packages. The TLV4376 (quad) is offered in a TSSOP-14 package. All versions are specified for operation from –40°C to +125°C.
