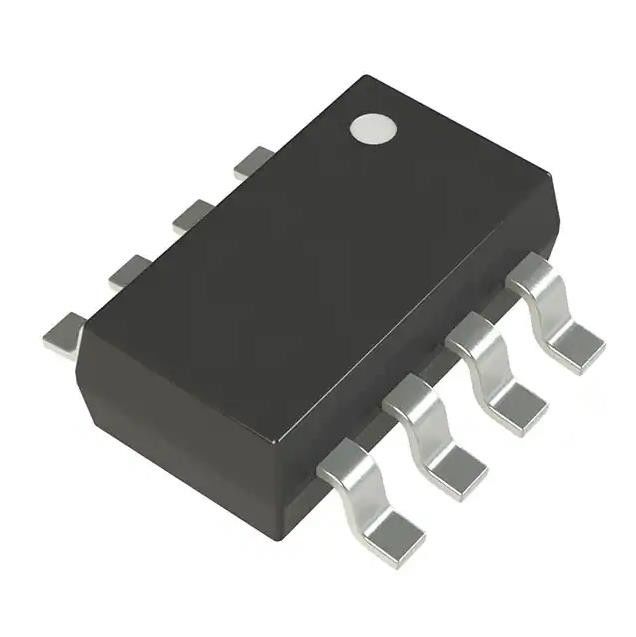

LM74701QDDFRQ1 Integrated Circuit Chip AUTOMOTIVE 3.2-V TO 65-V
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LM74701QDDFRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | N+1 ORing Controller | Delay Time - OFF: | 450 Ns |
|---|---|---|---|
| Current - Supply: | 80 µA | Voltage - Supply: | 3.2V ~ 65V |
| Operating Temperature: | -40°C ~ 125°C | Package / Case: | SOT-23-8 |
| High Light: | TSOT-23-8 Integrated Circuit Chip,LM74701QDDFRQ1 Integrated Circuit Chip,LM74701QDDFRQ1 |
||
Product Description
LM74701QDDFRQ1 AUTOMOTIVE 3.2-V TO 65-V REVERSEOR Controller 1:1 TSOT-23-8
Features of LM74701QDDFRQ1
AEC-Q100 qualified with the following results
– Device temperature grade 1:
–40°C to +125°C ambient operating temperature range
– Device HBM ESD classification level 2
– Device CDM ESD classification level C4B
• 3.2-V to 65-V input range (3.9-V startup)
• –33-V reverse voltage rating
• Charge pump for external N-Channel MOSFET
• 20 mV ANODE to CATHODE forward voltage drop regulation
• 1-µA shutdown current (EN = Low)
• 80-µA operating quiescent current (EN = High)
• 2-A peak gate turn-off current
• Fast response to reverse current blocking: < 0.75 µs
• Integrated battery voltage monitoring switch (SW)
• Meets automotive ISO7637 transient requirements
without additional input TVS diode (TVS less)
• 8-Pin SOT-23 package 2.90 mm × 1.60 mm
– Device temperature grade 1:
–40°C to +125°C ambient operating temperature range
– Device HBM ESD classification level 2
– Device CDM ESD classification level C4B
• 3.2-V to 65-V input range (3.9-V startup)
• –33-V reverse voltage rating
• Charge pump for external N-Channel MOSFET
• 20 mV ANODE to CATHODE forward voltage drop regulation
• 1-µA shutdown current (EN = Low)
• 80-µA operating quiescent current (EN = High)
• 2-A peak gate turn-off current
• Fast response to reverse current blocking: < 0.75 µs
• Integrated battery voltage monitoring switch (SW)
• Meets automotive ISO7637 transient requirements
without additional input TVS diode (TVS less)
• 8-Pin SOT-23 package 2.90 mm × 1.60 mm
Product Attributes of LM74701QDDFRQ1
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
OR Controllers, Ideal Diodes
|
|
Mfr
|
T I
|
|
Series
|
Automotive, AEC-Q100
|
|
Product Status
|
Active
|
|
Type
|
N+1 ORing Controller
|
|
FET Type
|
N-Channel
|
|
Ratio - Input:Output
|
1:1
|
|
Internal Switch(s)
|
Yes
|
|
Delay Time - ON
|
1.4 µs
|
|
Delay Time - OFF
|
450 ns
|
|
Current - Output (Max)
|
-
|
|
Current - Supply
|
80 µA
|
|
Voltage - Supply
|
3.2V ~ 65V
|
|
Applications
|
Automotive, Redundant Power Supplies
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SOT-23-8
|
|
Supplier Device Package
|
TSOT-23-8
|
|
Base Product Number
|
LM74701
|
