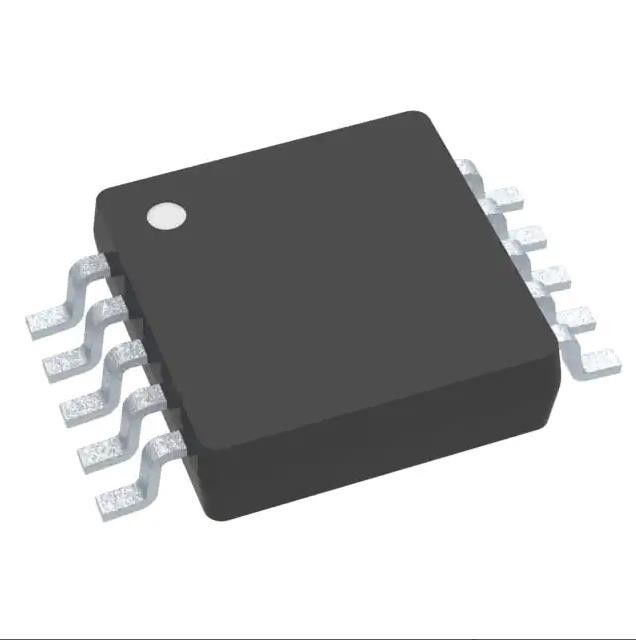

LM5022QDGSRQ1 IC REG CTRLR BOOST / SEPIC 10VSSOP Step Down IC
Product Details:
| Place of Origin: | Original |
| Brand Name: | TI |
| Certification: | Original |
| Model Number: | LM5022QDGSRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Topology: | Boost, SEPIC | Number Of Outputs: | 1 |
|---|---|---|---|
| Output Phases: | 1 | Voltage - Supply (Vcc/Vdd): | 6V ~ 60V |
| Frequency - Switching: | 200kHz ~ 2.24MHz | Duty Cycle (Max): | 95% |
| Operating Temperature: | -40°C ~ 125°C (TJ) | ||
| High Light: | LM5022QDGSRQ1 IC,IC REG CTRLR BOOST,SEPIC 10VSSOP Step Down IC |
||
Product Description
LM5022QDGSRQ1 IC REG CTRLR BOOST / SEPIC 10VSSOP Step-Down DC-DC Controller
Product Attributes of LM5022QDGSRQ1
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
DC DC Switching Controllers
|
|
Mfr
|
TI
|
|
Series
|
Automotive, AEC-Q100
|
| Package | Tape & Reel |
|
Product Status
|
Active
|
|
Output Type
|
Transistor Driver
|
|
Function
|
Step-Up, Step-Up/Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Boost, SEPIC
|
|
Number of Outputs
|
1
|
|
Output Phases
|
1
|
|
Voltage - Supply (Vcc/Vdd)
|
6V ~ 60V
|
|
Frequency - Switching
|
200kHz ~ 2.24MHz
|
|
Duty Cycle (Max)
|
95%
|
|
Synchronous Rectifier
|
No
|
|
Clock Sync
|
Yes
|
|
Serial Interfaces
|
-
|
|
Control Features
|
Frequency Control, Soft Start
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
|
|
Supplier Device Package
|
10-VSSOP
|
|
Base Product Number
|
LM5022
|
Features of LM5022QDGSRQ1
• AEC-Q100 Grade 1 Qualified with the following
results:
– Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
– Device HBM ESD Classification Level 2
– Device CDM ESD Classification Level C5
• Internal 60-V Start-Up Regulator
• 1-A Peak MOSFET Gate Driver
• VIN Range: 6 V to 60 V (operate down to 3 V after
startup)
• Duty Cycle Limit of 90%
• Programmable UVLO with Hysteresis
• Cycle-by-Cycle Current Limit
• Single Resistor Oscillator Frequency Set
• Adjustable Switching Frequency to 2.2MHz
• External Clock Synchronization
• Slope Compensation
• Adjustable Soft Start
• 10-Pin VSSOP Package
Applications of LM5022QDGSRQ1
• Boost Converter
• SEPIC Converter
