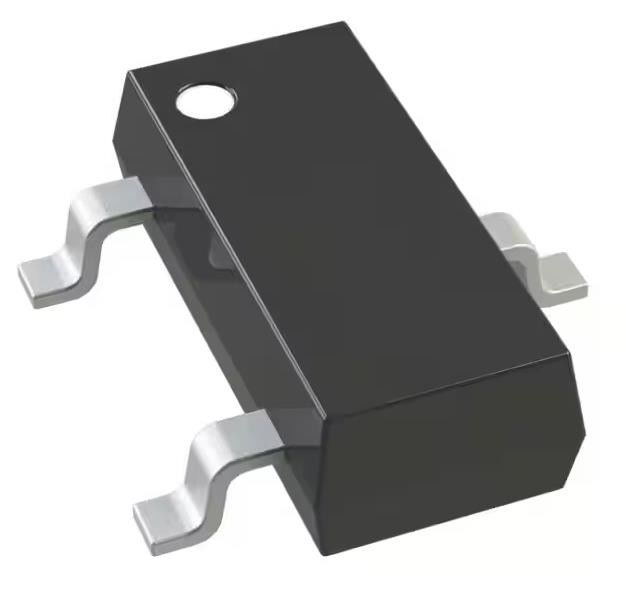

TLV431AFTA Shunt Voltage Reference IC Adjustable 1.24V 18 VV ±1% 15 mA SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV431AFTA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Reference Type: | Shunt | Output Type: | Adjustable |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 1.24V | Voltage - Output (Max): | 18V |
| Current - Output: | 15 MA | Tolerance: | ±1% |
| Current - Cathode: | 100 µA | Operating Temperature: | -40°C ~ 125°C (TA) |
| High Light: | TLV431AFTA Integrated Circuit Chip,SOT-23-3 Integrated Circuit Chip |
||
Product Description
TLV431AFTA Shunt Voltage Reference IC Adjustable 1.24V 18 VV ±1% 15 mA SOT-23-3
Specifications of TLV431AFTA
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 1.24V |
| Voltage - Output (Max) | 18 V |
| Current - Output | 15 mA |
| Tolerance | ±1% |
| Temperature Coefficient | - |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 100 µA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | TLV431 |
Features of TLV431AFTA
* Low-Voltage Operation VREF = 1.24V
* Temperature Range -40 to +125°C
* Reference Voltage Tolerance at +25°C
- 0.2% TLV431T
- 0.5% TLV431B
- 1% TLV431A
* Typical Temperature Drift
- 4mV (0°C to +70°C)
- 6mV (-40°C to +85°C)
- 11mV (-40°C to +125°C)
* 80µA Minimum Cathode Current
* 0.25Ω Typical Output Impedance
* Adjustable Output Voltage VREF to 18V
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* An Automotive-Compliant Part is Available Under Separate Datasheet (TLV431Q)
Applications of TLV431AFTA
The TLV431 is a three-terminal, adjustable shunt regulator offering excellent temperature stability and output current handling capability up to 20mA. The output voltage may be set to any chosen voltage between 1.24V and 18V by selection of two external divider resistors.
Environmental & Export Classifications of TLV431AFTA
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
