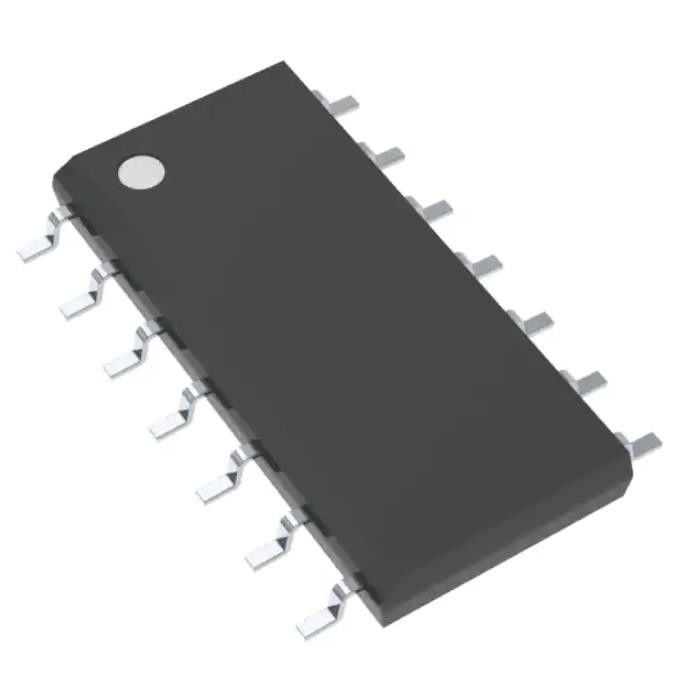

LM224ADR Switching Regulator IC Opamp Gp 4 Circuit 14 Soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM224ADR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Slew Rate: | 0.5V/µs | Gain Bandwidth Product: | 1.2 MHz |
|---|---|---|---|
| Current - Input Bias: | 15 NA | Voltage - Input Offset: | 2 MV |
| Current - Supply: | 1.4mA (x4 Channels) | Current - Output / Channel: | 30 MA |
| Voltage - Supply Span (Min): | 3 V | Voltage - Supply Span (Max): | 30 V |
| High Light: | LM224ADR Switching Regulator IC,Opamp Gp 4 Circuit 14 Soic,LM224ADR 14 Soic |
||
Product Description
LM224ADR General Purpose Relays Ic Opamp Gp 4 Circuit 14soic
LM224ADR Switching Regulator IC Opamp Gp 4 Circuit 14soic
General Purpose Amplifier 4 Circuit 14-SOIC
Specifications of LM224ADR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 4 |
| Output Type | - |
| Slew Rate | 0.5V/µs |
| Gain Bandwidth Product | 1.2 MHz |
| Current - Input Bias | 15 nA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 1.4mA (x4 Channels) |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | LM224 |
Features of LM224ADR
• New LM324B and LM2902B
• B versions are drop-in replacements for all versions of LM224, LM324, and LM2902
• Improved specifications of B version
– Supply range: 3 V to 36 V (B, BA versions)
– Low input offset voltage: ±2 mV (BA version) / 3 mV (B version)
– ESD rating: 2 kV (HBM), 1.5 kV (CDM)
– EMI rejection: integrated RF and EMI filter
– Low input bias current: 50 nA maximum (across
–40°C to 125°C)
• Common-mode input voltage range includes V–
• Input voltage differential can be driven up to supply voltage
• For dual B versions, see LM358B and LM2904B
application of LM224ADR
• Merchant network and server power supply units
• Multi-function printers
• Power supplies and mobile chargers
• Desktop PC and motherboard
• Indoor and outdoor air conditioners
• Washers, dryers, and refrigerators
• AC inverters, string inverters, central inverters, and voltage frequency drives
• Uninterruptible power supplies
Environmental & Export Classifications of LM224ADR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
