SN74AVC2T45YZPR Voltage Level Translator Bidirectional 1 Circuit 2 Channel 500Mbps
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74AVC2T45YZPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Translator Type: | Voltage Level | Channel Type: | Bidirectional |
|---|---|---|---|
| Number Of Circuits: | 1 | Channels Per Circuit: | 2 |
| Voltage - VCCA: | 1.2 V ~ 3.6 V | Voltage - VCCB: | 1.2 V ~ 3.6 V |
| Output Type: | Tri-State, Non-Inverted | Data Rate: | 500Mbps |
| High Light: | 500Mbps SN74AVC2T45YZPR Voltage Level Translator,1 Circuit SN74AVC2T45YZPR Voltage Level Translator,Bidirectional SN74AVC2T45YZPR Voltage Level Translator |
||
Product Description
SN74AVC2T45YZPR Voltage Level Translator Bidirectional 1 Circuit 2 Channel 500Mbps
Specifications of SN74AVC2T45YZPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Translators, Level Shifters | |
| Mfr | Texas Instruments |
| Series | 74AVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Translator Type | Voltage Level |
| Channel Type | Bidirectional |
| Number of Circuits | 1 |
| Channels per Circuit | 2 |
| Voltage - VCCA | 1.2 V ~ 3.6 V |
| Voltage - VCCB | 1.2 V ~ 3.6 V |
| Input Signal | - |
| Output Signal | - |
| Output Type | Tri-State, Non-Inverted |
| Data Rate | 500Mbps |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Features | - |
| Mounting Type | Surface Mount |

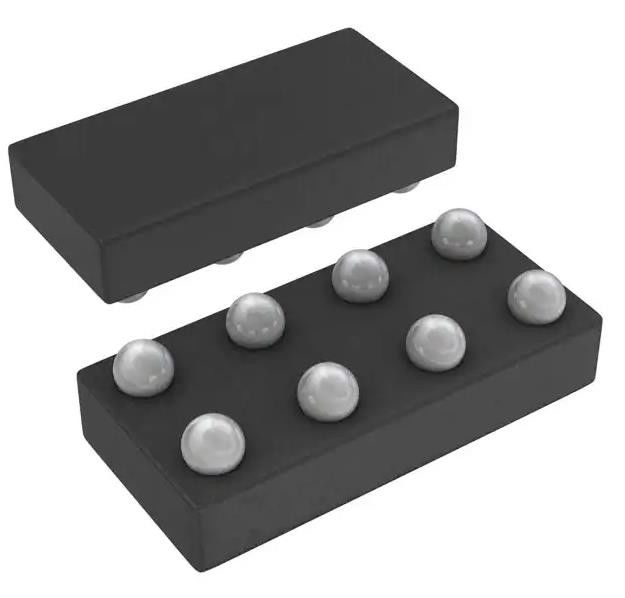

| Package / Case | 8-XFBGA, DSBGA |
| Supplier Device Package | 8-DSBGA (1.9x0.9) |
| Base Product Number | 74AVC2T45 |
Features of SN74AVC2T45YZPR
• Available in the Texas Instruments NanoFree™ Package
• VCC Isolation Feature: If Either VCC Input Is at GND, Both Ports Are in the High-Impedance State
• Dual Supply Rail Design
• I/Os Are 4.6-V Over Voltage Tolerant
• Ioff Supports Partial-Power-Down Mode Operation
• Max Data Rates
– 500 Mbps (1.8 V to 3.3 V)
– 320 Mbps (<1.8 V to 3.3 V )
– 320 Mbps (Level-Shifting to 2.5 V or 1.8 V)
– 280 Mbps (Level-Shifting to 1.5 V)
– 240 Mbps (Level-Shifting to 1.2 V)
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
Application of SN74AVC2T45YZPR
• Smartphones
• Servers
• Desktop PCs and Notebooks
• Other Portable Devices
