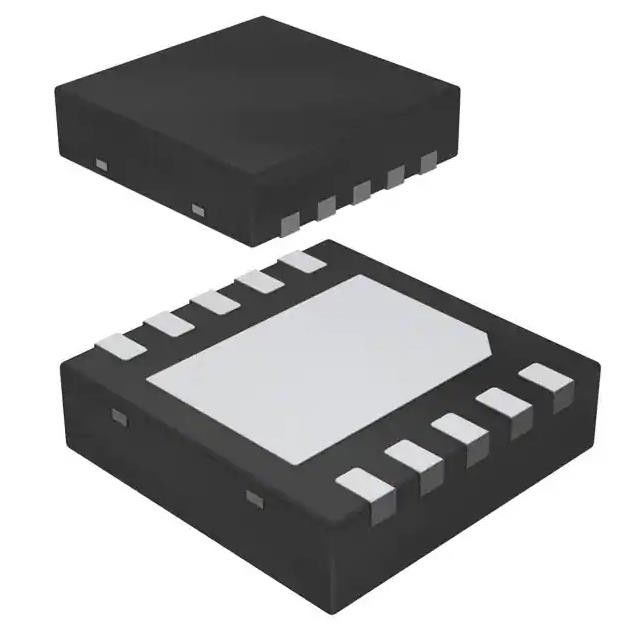

LMR10530XSD/NOPB Transistor Ic Chip Ic Reg Buck Adjustable 3a 10wson
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMR10530XSD/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Step-Down |
|---|---|---|---|
| Output Configuration: | Positive | Topology: | Buck |
| Output Type: | Adjustable | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 3V | Voltage - Input (Max): | 5.5V |
Product Description
LMR10530XSD/NOPB Transistor Ic Chip Ic Reg Buck Adjustable 3a 10wson
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A 10-WFDFN Exposed Pad
Specifications of LMR10530XSD/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SIMPLE SWITCHER® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 4.5V |
| Current - Output | 3A |
| Frequency - Switching | 1.5MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
Features of LMR10530XSD/NOPB
• Input Voltage Range of 3 V to 5.5 V
• Output Voltage Range of 0.6V to 4.5 V
• 1.5-MHz (LMR10530X) and 3-MHz (LMR10530Y) Switching Frequencies
• 3-A Steady-State Output Current
• Low Shutdown IQ, 300 nA Typical
• 56-mΩ PMOS Switch
• Internal Soft Start
• Internally Compensated Peak Current-Mode Control
• Cycle-by-cycle Current Limit and Thermal Shutdown
• WSON (3 × 3 × 0.8 mm) Packaging
• Create a custom design using the LMR10530 with the WEBENCH® Power Designer
Applications of LMR10530XSD/NOPB
• Point-of-load Conversions from 3.3-V and 5-VRails
• Space-Constrained Applications
Environmental & Export Classifications of LMR10530XSD/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
