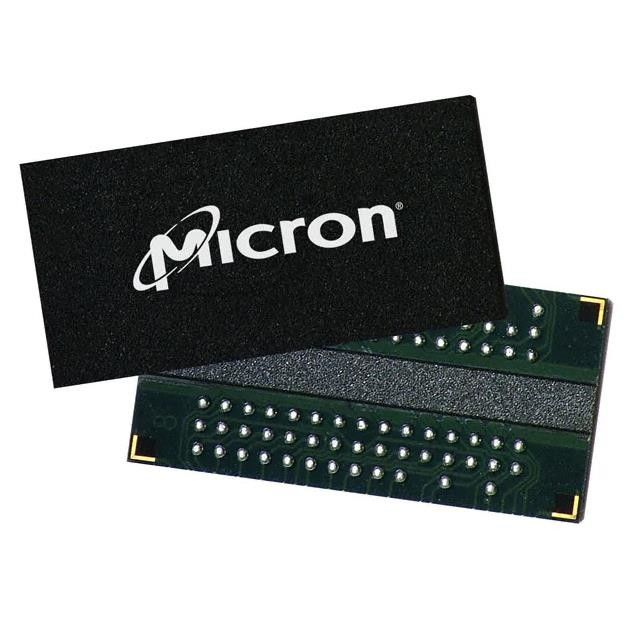

MT47H16M16BG-3IT:B Integrated Circuit Ic Chip Dram 256mbit Parallel 84fbga
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MT47H16M16BG-3IT:B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tape & Reel (TR) | Product Status: | Obsolete |
|---|---|---|---|
| Memory Type: | Volatile | Memory Format: | DRAM |
| Technology: | SDRAM - DDR2 | Memory Size: | 256Mbit |
| Memory Organization: | 16M X 16 | Memory Interface: | Parallel |
Product Description
MT47H16M16BG-3IT:B Transistor Ic Chip Ic Dram 256mbit Parallel 84fbga
SDRAM - DDR2 Memory IC 256Mbit Parallel 333 MHz 450 ps 84-FBGA (8x14)
Specifications of MT47H16M16BG-3IT:B
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | Micron Technology Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Memory Type | Volatile |
| Memory Format | DRAM |
| Technology | SDRAM - DDR2 |
| Memory Size | 256Mbit |
| Memory Organization | 16M x 16 |
| Memory Interface | Parallel |
| Clock Frequency | 333 MHz |
| Write Cycle Time - Word, Page | 15ns |
| Access Time | 450 ps |
| Voltage - Supply | 1.7V ~ 1.9V |
| Operating Temperature | -40°C ~ 95°C (TC) |
| Mounting Type | Surface Mount |
| Package / Case | 84-FBGA |
| Supplier Device Package | 84-FBGA (8x14) |
| Base Product Number | MT47H16M16 |
Features of MT47H16M16BG-3IT:B
• Vdd = +1.8V ±0.1V, VddQ = +1.8V ±0.1V
• JEDEC-standard 1.8V I/O (SSTL_18-compatible)
• Differential data strobe (DQS, DQS#) option
• 4n-bit prefetch architecture
• Duplicate output strobe (RDQS) option for x8
• DLL to align DQ and DQS transitions with CK
• 4 internal banks for concurrent operation
• Programmable CAS latency (CL)
• Posted CAS additive latency (AL)
• WRITE latency = READ latency - 1 tCK
• Selectable burst lengths (BL): 4 or 8
• Adjustable data-output drive strength
• 64ms, 8,192-cycle refresh
• On-die termination (ODT)
• Industrial temperature (IT) option
• Automotive temperature (AT) option
• RoHS compliant
• Supports JEDEC clock jitter specification
Automotive Temperature of MT47H16M16BG-3IT:B
The automotive temperature (AT) option, if offered, has two simultaneous requirements: ambient temperature surrounding the device cannot be less than –40°C or greater than +105°C, and the case temperature cannot be less than –40°C or greater than +105°C. JEDEC specifications require the refresh rate to double when TC exceeds +85°C; this also requires use of the high-temperature self refresh option. Additionally, ODT resistance and the input/output impedance must be derated when TC is < 0°C or > +85°C.
Environmental & Export Classifications of MT47H16M16BG-3IT:B
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991B2A |
| HTSUS | 8542.32.0024 |
