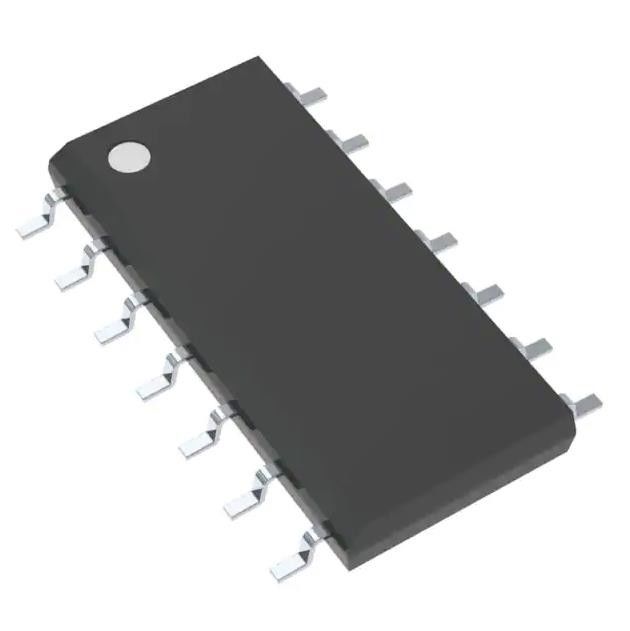

LMC6036IMX/NOPB CMOS Amplifier 4 Circuit Differential, Rail-to-Rail 14-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMC6036IMX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Amplifier Type: | CMOS |
|---|---|---|---|
| Number Of Circuits: | 4 | Output Type: | Differential, Rail-to-Rail |
| Slew Rate: | 1.5V/µs | Gain Bandwidth Product: | 1.4 MHz |
| Current - Input Bias: | 0.02 PA | Voltage - Input Offset: | 500 µV |
Product Description
LMC6036IMX/NOPB CMOS Amplifier 4 Circuit Differential, Rail-to-Rail 14-SOIC
CMOS Amplifier 4 Circuit Differential, Rail-to-Rail 14-SOIC
Specifications of LMC6036IMX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 4 |
| Output Type | Differential, Rail-to-Rail |
| Slew Rate | 1.5V/µs |
| Gain Bandwidth Product | 1.4 MHz |
| Current - Input Bias | 0.02 pA |
| Voltage - Input Offset | 500 µV |
| Current - Supply | 1.3mA (x4 Channels) |
| Current - Output / Channel | 8 mA |
| Voltage - Supply Span (Min) | 2 V |
| Voltage - Supply Span (Max) | 15.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | LMC6036 |
Features of TPS22918TDBVRQ1
• (Typical Unless Otherwise Noted)
• LMC6035 in DSBGA Package
• Ensured 2.7V, 3V, 5V and 15V Performance
• Specified for 2 kΩ and 600Ω Loads
• Wide Operating Range: 2.0V to 15.5V
• Ultra Low Input Current: 20fA
• Rail-to-Rail Output Swing
– @ 600Ω: 200mV from Either Rail at 2.7V
– @ 100kΩ: 5mV from Either Rail at 2.7V
• High Voltage Gain: 126dB
• Wide Input Common-Mode Voltage Range
– -0.1V to 2.3V at VS = 2.7V
• Low Distortion: 0.01% at 10kHz
• LMC6035 Dual LMC6036 Quad
• See AN-1112 (Literature Number SNVA009) for DSBGA Considerations
• AEC-Q100 Grade 3 Qualified (LMC6035-Q1)
Applications of TPS22918TDBVRQ1
• High Impedance Buffer or Preamplifier
• Battery Powered Electronics
• Medical Instrumentation
• Automotive Applications
Environmental & Export Classifications of TPS22918TDBVRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
